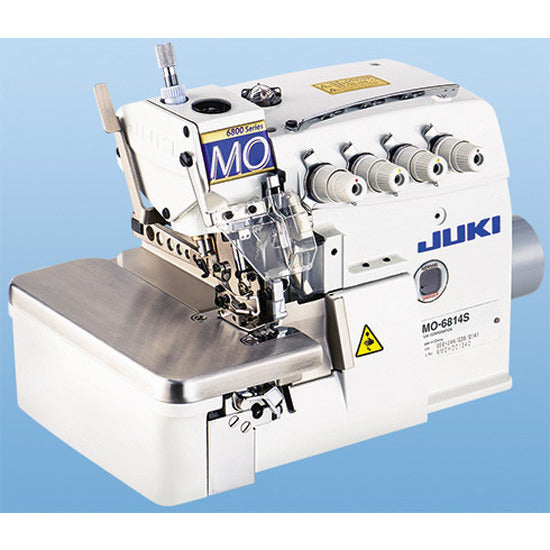

Juki MO-6814S - 4-Thread Industrial Overlock Machine
The Juki MO-6814S 4-Thread Industrial Overlock Machine is designed for professional sewing, garment production, tailoring, and high-volume overlock applications. Part of JUKI's MO-6800S Series, it delivers high-speed, precise, and beautifully finished seams across a wide range of light- to heavy-weight materials.
-
1-Year Warranty + Free 1-Year Machine Training at our Clementi showroom
-
Free Installation & Islandwide Delivery + Demo upon delivery
- Maximum sewing speed of up to 7,000 stitches/min
- 4-thread overlock / safety stitch configuration
- Suitable for light- to heavy-weight materials
- Automatic lubrication for reliable operation
- Optimised design for reduced operating noise and vibration
Juki MO-6814S 4-Thread Industrial Overlock Machine Features
High-Speed Sewing with Excellent Seam Quality
The Juki MO-6814S is engineered to produce beautifully finished seams even when operating at high speeds of up to 7,000 stitches per minute. Its needle thread take-up mechanism and looper thread take-up lever help maintain consistent thread tension, producing soft, well-balanced seams that respond effectively to the elasticity of different fabrics.
The machine is suitable for a wide range of sewing materials, from lightweight fabrics to heavier materials. Its wider and brighter needle entry area improves visibility and responsiveness, making operation easier and more comfortable for the user.
Reduced Noise and Vibration
The optimally balanced machine design helps reduce operating noise and vibration, providing a smoother and more comfortable sewing experience. This makes the MO-6814S suitable for demanding production environments where reliable performance is required throughout the working day.
Easy Differential Feed Adjustment
The MO-6814S features convenient adjustment mechanisms that allow the operator to fine-tune the machine according to the material being sewn. Differential-feed micro-adjustment, differential feed ratio, and main feed dog height can be adjusted from the front of the machine, making it easier to achieve the desired stitch quality.
Flexible Fabric Handling
The differential feed system supports both gathering and stretching applications, helping prevent unwanted fabric puckering or stretching. This makes the machine suitable for knitted fabrics, stretch materials, garments, and a wide range of industrial sewing applications.
Model Series
- MO-6804S – 1-Needle Overlock
- MO-6814S – 2-Needle Overlock / 4-Thread Configuration
- MO-6816S – Safety Stitch
- MO-6843S – 3-Needle Safety Stitch
Juki MO-6814S Technical Specifications
| Stitch Type |
2-Needle Overlock / 4-Thread |
| Maximum Sewing Speed |
7,000 sti/min* |
| Stitch Length |
0.6 – 3.8 mm (up to 4.5 mm) |
| Needle Gauge |
2.0 / 3.0 / 5.0 mm |
| Overedging Width |
1.5 – 5.0 mm depending on configuration |
| Differential Feed Ratio |
Gathering: 1:2 (Max. 1:4) / Stretching: 1:0.7 (Max. 1:0.6) |
| Needle Bar Stroke |
24.5 mm (60H: 27.0 mm) |
| Needle Inclination Angle |
20° |
| Needle Bar Bushing |
Lower Bushing Method |
| Needle Type |
DC × 27 (excluding some subclass models) |
| Maximum Presser Foot Lift |
7 mm (excluding some subclass models) |
| Maximum Presser Foot Pressure |
63.7 N (6.5 kgf) |
| Stitch Adjustment |
Push-button |
| Differential Feed Adjustment |
Lever with Micro-adjustment |
| Machine Head Weight |
27 kg |
| Lubrication |
Automatic |
| Lubricating Oil |
JUKI Machine Oil 18 / ISO VG18 Equivalent |
| Needle Cooler |
Provided as Standard |
| Needle Thread Heat Remover |
Provided as Standard |
| Micro-lifter |
Optional |
Suitable Applications
- Garment manufacturing
- Tailoring and alteration businesses
- Knits and stretch fabrics
- Light- to heavy-weight materials
- High-volume garment production
- Professional sewing workshops
- Industrial overlock and edge-finishing applications
Complete Machine Set
The complete setup can include the Juki MO-6814S machine head, industrial tabletop, stand, and motor system, providing a ready-to-use professional sewing workstation.
Export Packaging
-
Machine Head: 32 kg – 480 × 340 × 500 mm
-
Motor: 22 kg – 370 × 300 × 250 mm
-
Table: 18 kg – 1070 × 570 × 40 mm
-
Stand: 20 kg – 800 × 580 × 140 mm
-
Total: 4 cartons
