PFAFF 2545-798/01-G-6/01-900/81-910/04-911/35-918/29-925/03 ECO CLPM9/P40CD Long Arm Industrial Sewing Machine
High-Speed Unison Feed Long Arm Industrial Sewing Machine with Vertical Hook, Automatic Thread Trimmer, Automatic Back Tack, Automatic Presser Foot Lift & P40CD Direct Drive Servo Motor.
The PFAFF 2545-798/01 Long Arm is engineered for heavy-duty industrial sewing applications requiring exceptional stitch quality, extended working space, and reliable performance. Built with PFAFF's renowned POWERLINE ECO technology, this machine combines robust mechanical construction with essential electronic automation to deliver consistent results while remaining easy to maintain.
The extended 70mm long arm provides additional workspace for handling bulky materials and large assemblies, making it an excellent choice for upholstery, leather goods, automotive interiors, technical textiles, and other demanding sewing applications.
Available PFAFF 2545 Variants
-
PFAFF 2545-G-6/01 (Basic)
Complete machine supplied with sewing head, table, stand, servo motor, and standard accessories.
-
PFAFF 2545-G-6/01-900/81-910/04-911/35-918/29-925/03 ECO CLPM9/P40CD (Plus)
Includes automatic thread trimming, automatic back tack, automatic presser foot lift, automatic high stroke change-over, and the P40CD Direct Drive Servo Motor.
-

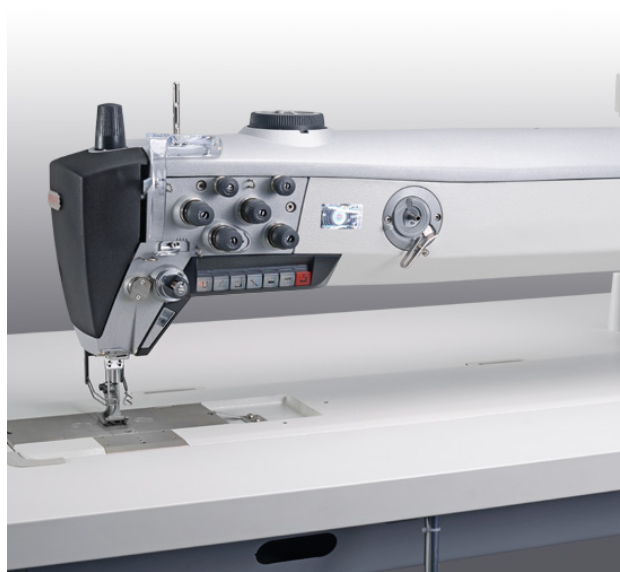

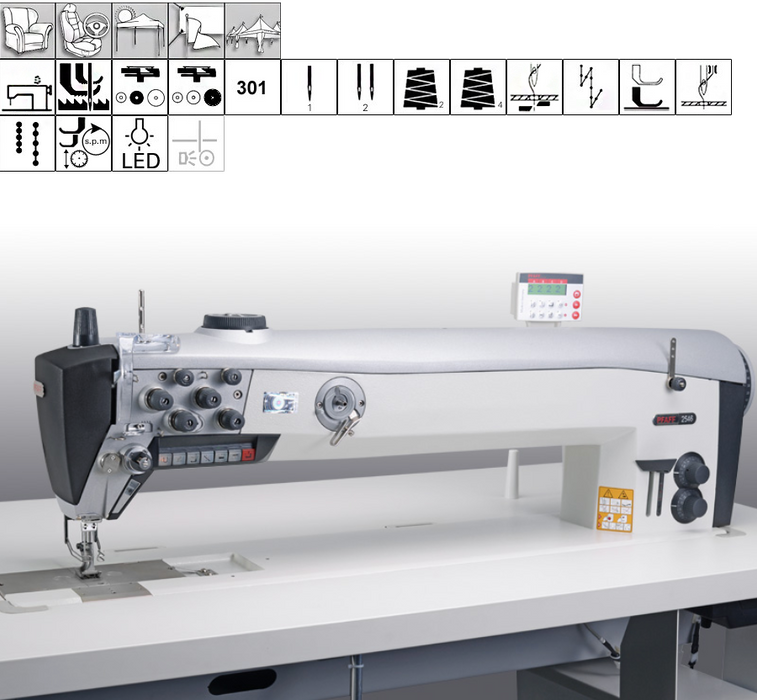

PFAFF 2545-798/01-G-6/01-900/81-910/04-911/35-918/29-925/03 ECO CLPM9/P40CD (Long Arm)
Full automatic version with an additional 70mm extended arm, offering greater sewing clearance for larger workpieces while retaining all premium automation features.
Key Features
- Premium unison feed mechanism with vertical hook for consistent stitch quality.
- Extended 70mm long arm provides additional workspace for bulky materials.
- Excellent stitch quality for visible top-stitching, assembly, and securing seams.
- Ergonomic adjustment dials allow quick and accurate top feed stroke settings.
- Automatic thread trimming improves productivity and delivers neat thread ends.
- Automatic back tack and automatic presser foot lift for faster production.
- Automatic high stroke change-over for sewing varying material thicknesses.
- Integrated P40CD Direct Drive Servo Motor ensures quiet, energy-efficient operation.
- Large sewing clearance under the machine arm (345 × 120 mm).
- Built-in bobbin winder ("Winding Assistant") for quick bobbin preparation.

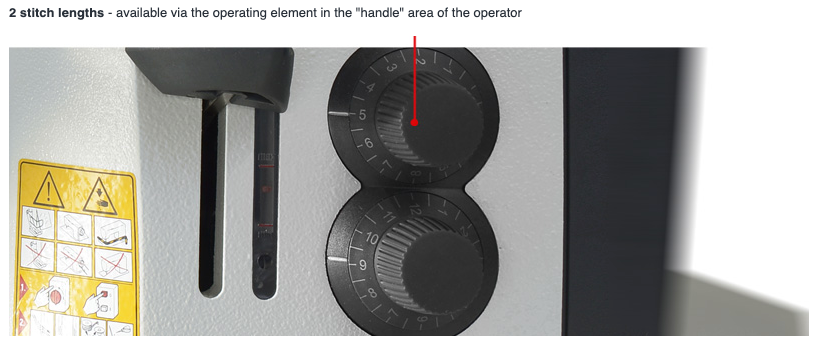

- Integrated second stitch length and additional thread tension functions.
- Fast reverse sewing and back-tacking at the touch of a button.
- Designed for durability, simple servicing, and long operating life.
Technical Specifications
| Needle System |
134-35 |
| Needle Size |
C 110–140 Nm / D 150–200 Nm |
| Maximum Sewing Speed |
3,800 stitches/minute |
| Maximum Stitch Length |
12.0 mm |
| Maximum Top Feed Stroke |
9.0 mm |
| Maximum Thread Size |
C 15/3, D 8/3 |
| Stitch Type |
2 × 301 Lockstitch |
| Presser Foot Clearance |
Up to 20 mm |
| Power Supply |
Single-phase AC 230V, 50/60Hz |
Ideal Applications
- Leather goods manufacturing
- Automotive upholstery
- Furniture upholstery
- Heavy textile products
- Canvas and industrial fabrics
- Technical textiles

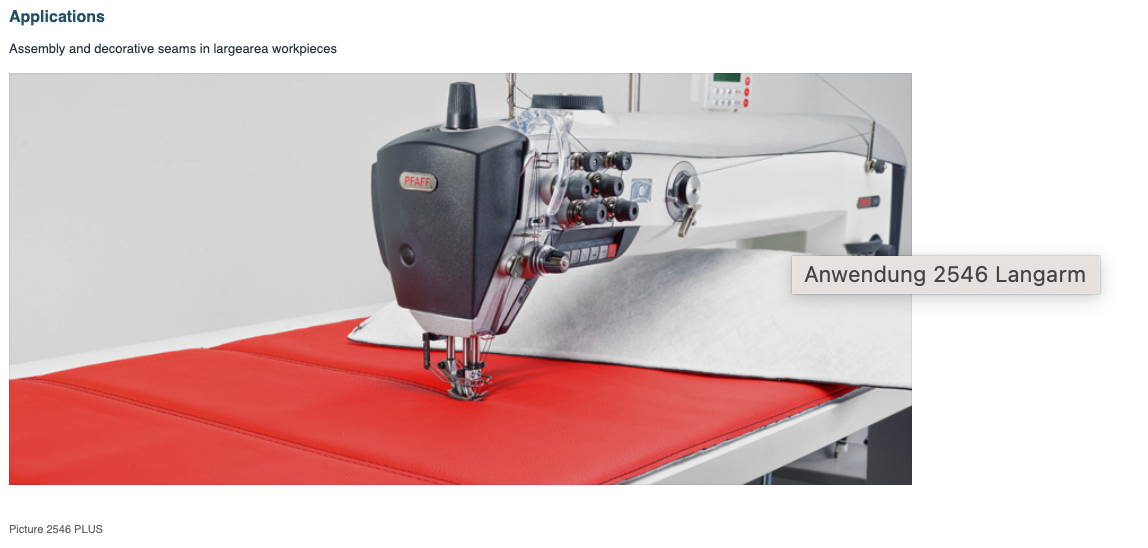

- Assembly and decorative top-stitching
Downloads
📄 Download Product Brochure
📘 Download Instruction Manual
🛠 Download Adjustment Manual
