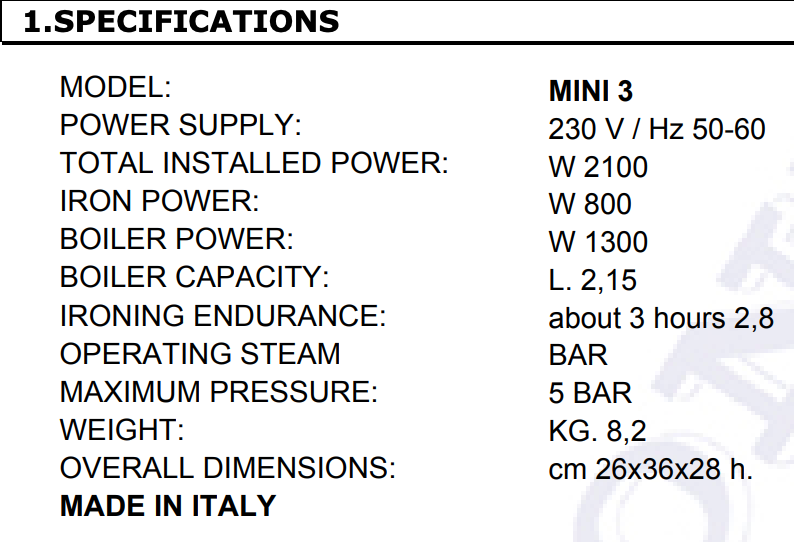

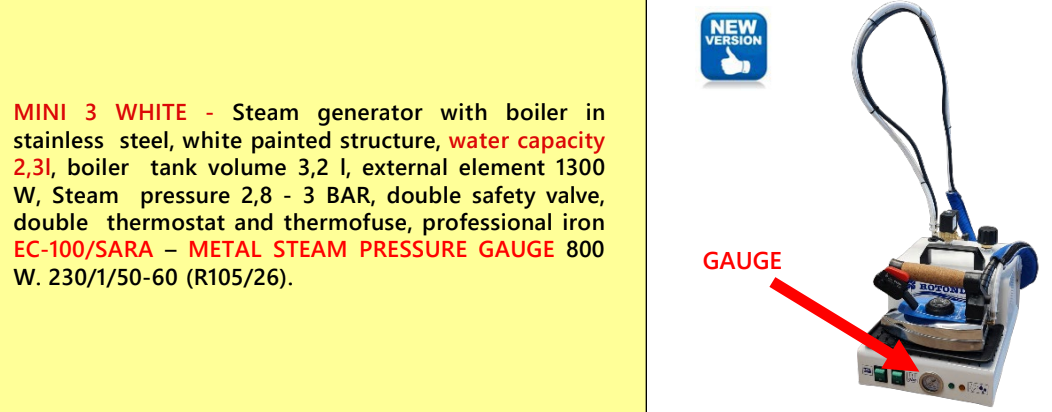

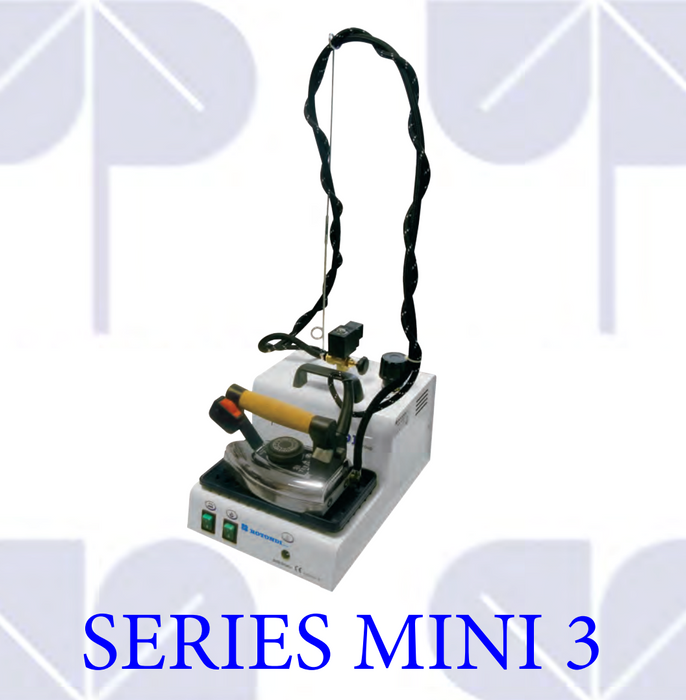

The ROTONDI Group S.r.l. Mini 3 (Product Number: R105) is a professional-grade, portable semi-industrial steam generator system. Encased in a robust, white-painted steel or stainless steel structure, it combines a high-capacity boiler with a heavy-duty professional iron to deliver dry steam performance.
Application and Functionality
The Mini 3 is built for high-quality garment finishing in tailor shops, dry cleaners, fashion design studios, and heavy-duty domestic environments. Its primary specialty is producing continuous, deep-penetrating "dry steam" at 2.8 to 3 BAR pressure. This allows for quick, single-sided, and crisp pressing without scorching or leaving shiny marks on delicate fabrics.
Water volume: Mini 3 roughly 2 litres; Mini 45 roughly 3.2 litres.
Water droplets will be discharged when there is too much water in the Boiler Tank, or from the condensed steam vapour in the pipe.
Mini steam iron setup guide
- Mini steam iron with boiler: procedure to prevent water droplets during ironing
Initial Heat-Up Steps
- Set iron shoe temperature to cotton or wool
- Let boiler heat up to required pressure from room temperature
- Place iron on silicone rest, then press and hold steam switch for 8 seconds
- Heats the hose and iron shoe
- Prevents steam condensation on discharge
- Repeat up to twice depending on room temperature
Resuming After Idle Periods
- Seamstress cannot iron continuously (needs time to align fabric on ironing board)
- If idle for 3 minutes or more, repeat the warm-up steps
- Place iron on rest, depress steam switch for 8 seconds
- Water droplets will visibly accumulate on the iron rest
- Safe to use on workpiece once 8 seconds complete
Key Rule
- Every time the iron is left idle: lift onto iron rest, activate steam for 8 seconds before resuming work
迷你蒸汽熨斗使用指南
- 带独立锅炉的迷你蒸汽熨斗：熨烫过程中防止滴水的操作步骤
初始预热步骤
- 将熨斗底板温度设定为“棉”或“羊毛”档位
- 让锅炉从室温加热至所需压力
- 将熨斗放置在硅胶底座上，按住蒸汽开关 8 秒钟
- 此步骤可预热蒸汽软管和熨斗底板
- 防止蒸汽在喷出时冷凝成水滴
- 根据室温情况，可重复上述步骤最多两次
暂停后的恢复操作
- 实际操作中往往无法连续熨烫（需花时间在熨衣板上摆放和调整衣物）
- 若闲置 3 分钟或更长时间，请重复预热步骤
- 将熨斗放回底座，按住蒸汽开关 8 秒钟
- 此时熨斗底座上会出现可见的水滴积聚
- 8 秒结束后，即可安全地在衣物上进行熨烫
关键规则
- 每次暂停使用时：请将熨斗放回底座，并在恢复工作前按住蒸汽开关 8 秒钟进行预热
Set the Thermostat to Cotton, this a safer range to use the Iron.
将熨斗恒温器调至棉质模式，这是使用熨斗更安全的温度范围。
Product Applications Senario:
- 1: The Tailor's Workspace;
- 2: Commercial Laundry Setup;
- 3: Fashion Studio Bench.
Failure Possibilities
Like any pressurized thermal equipment, the system can fail over time due to wear or lack of maintenance:
-
Limescale Blockage: Mineral buildup clogs the internal solenoid valve or steam holes, stopping steam output.
-
Safety Valve Cap Leaking: The rubber gasket on the security valve plug degrades, letting steam escape from the filler cap.
-
Heating Element Burnout: Running the 1300W boiler element empty or with extreme lime buildup causes it to overheat and fail.
-
Thermostat / Thermal Fuse Tripping: Overheating triggers the safety limit switches, preventing the unit from heating up at all.
- Solenoid Valve Failure: Electrical or mechanical failure prevents the valve from opening when the iron's steam button is pressed.
Steps to Perform a Replacement, always consult your local supplier before attempting to any service or replacement action.
Always ensure the machine is completely switched off, unplugged from the wall outlet, and fully cooled down to 0 BAR pressure before starting any maintenance or component replacement.
-
Drain the Boiler: Open the bottom drain plug or empty the unit completely to clear out any remaining water.
-
Remove the Outer Casing: Unscrew the fastening bolts on the steel housing to expose the internal wiring, switches, and boiler assembly.
-
Disconnect Wires and Hoses: Take a photo of the layout for reference. Use wrenches to disconnect the faulty part (e.g., solenoid valve, heating element) from the boiler. Unplug its electrical terminals.
-
Install the New Component: Thread the original Rotondi factory replacement part into place, applying high-temperature thread sealant if replacing a plumbing fitting. Reconnect the wires securely.
- Seal and Test: Reassemble the outer protective cover. Fill with water, plug it in, and check for any steam or water leaks under pressure.
Recommended Replacement Rate & Spare Pieces
For a smooth operation in commercial settings, it is best to stock these items:
-
Security Valve Gaskets: Have 2 to 3 pieces on hand. Replace them every 1,200 hours of use or every 2 years.
-
Solenoid Valve Valve/Coil Assembly: Keep 1 spare unit on hand, as this part handles high cycles of electrical switching.
- Boiler Cap / Safety Valve Plug: Keep 1 spare unit on hand in case the thread or physical valve spring wears out.
Compatible Models
-
Rotondi Mini 3 Inox (The identical internal layout built inside an all-stainless body)
-
Rotondi Mini 4 (Utilizes the same core commercial iron attachments and boiler caps)
- Rotondi EC-100 & EC-2002 Series (The standard professional steam irons paired natively with this unit)
Maintenance Steps for Cleaning Out Limescale
Step 1: Drain and Flush (Every 20 Hours of Work)
-
Turn off all power switches, unplug the unit, and let it cool completely until the pressure gauge reads 0 BAR.
-
Slowly unscrew the 1/2" safety cap plug to relieve any hidden pressure.
-
Pick up the empty Mini 3 unit and tilt it completely to the right side over a sink or bucket.
- Pour fresh water inside, shake it gently, and tilt it out again to flush out loose white flakes and mineral impurities.
Step 2: Descaling the Internal Chamber
-
Pour a mixture of 75% distilled water and 25% white vinegar (or a dedicated commercial citric acid descaler) through the top filling hole. Do not overfill past the 2.15-litre limit.
-
Tighten the safety cap back down. Plug in the unit and turn on only the boiler switch.
-
Allow the machine to heat up completely until it reaches its operating pressure of 2.8 to 3 BAR.
-
Press the steam button on the iron repeatedly for a few minutes over an empty basin or thick cloth. This forces the acidic cleaning mix through the core assembly and iron steam vents to clear out stubborn mineral scale.
-
Turn the machine completely off. Let it sit undisturbed for 30 minutes so the solution can break down the scale layer on the heating element.
Step 3: Final Freshwater Rinse
-
Once cooled down again, open the safety cap and tilt the unit to empty all remaining vinegar solution.
- Fill the unit with pure, clean water and flush it out two more times to remove any remaining vinegar or dislodged loose scale.
