JUKI LU-1509NS Industrial Sewing Machine | Ban Soon

Name: JUKI LU-1509NS Industrial Sewing Machine | Ban Soon
Brand: Juki
SKU: JUK-LU1509NS
Price: 4688.0 SGD
Availability: InStock

$0.00 SGD - $0.00 SGD

$0.00 SGD

$4,688.00 SGD

$4,688.00 SGD - $4,688.00 SGD

$4,688.00 SGD

Quantity

Description
Technical Specifications
Warranty

Description

JUKI Industrial Sewing

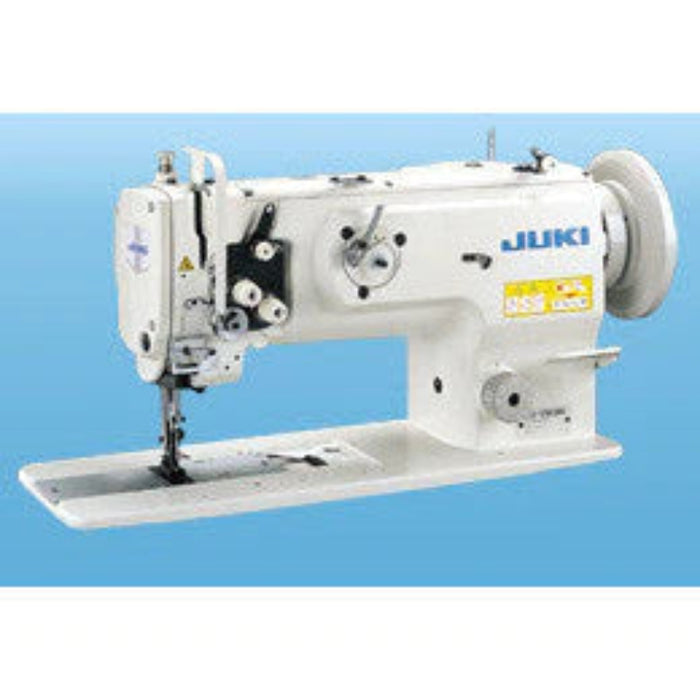

JUKI LU-1509NS Industrial Lockstitch Machine

The JUKI LU-1509NS is a single-needle industrial lockstitch sewing machine featuring a unison-feed (compound-feed) mechanism and a vertical-axis large hook. Designed for heavy-weight materials, it helps maintain consistent feeding and dependable stitch quality when sewing thick fabrics, layered assemblies and demanding industrial products.

Built for Heavy-Duty Sewing

Designed for production environments that require controlled feeding and durable seams, the LU-1509NS is suitable for applications such as leather goods, upholstery, canvas products, bags and other heavy textile work. Its coordinated feeding action helps reduce unwanted movement between material layers.

Unison Feed

The needle, feed dog and presser-foot feeding action work together to help move multiple layers consistently through the sewing area.

Vertical-Axis Large Hook

Designed for industrial lockstitch sewing and demanding thread-handling requirements.

Long Stitch Capability

The NS-series comparison specifications list a maximum stitch length of 9 mm. Please confirm the exact model configuration before ordering.

Adjustable Material Handling

Adjustable alternating vertical movement helps accommodate different material thicknesses and sewing conditions.

Technical Specifications

The table below compares the NS and NH variants in the LU-1508/LU-1509 series. Specifications vary by model; the NH version is intended for extra-heavy materials.

Specification	LU-1508NS / LU-1509NS	LU-1508NH / LU-1509NH
Application	Heavy-weight materials	Extra-heavy-weight materials
Maximum Sewing Speed	2,500 stitches/min	2,000 stitches/min
Maximum Stitch Length	9 mm	10 mm
Presser Foot Lift by Knee	16 mm
Alternating Vertical Movement	2.5–6.5 mm, adjustable
Needle System	135 × 17 (Nm 125–Nm 180)
Recommended Thread	#30–#5 (B46–B138) Nm 60/3–20/3	#20–#1 (B69–B207) Nm 40/3–8/3

On mobile devices, swipe horizontally across the table to view all specifications.

Recommended Applications

A suitable option to consider for businesses sewing heavy materials and multi-layer products.

Leather Goods Canvas Products Tarpaulins Furniture Upholstery Automotive Interiors Bags & Luggage Heavy Textile Products Industrial Sewing Multi-Layer Materials

What's Included?

JUKI LU-1509NS industrial lockstitch sewing machine
Standard JUKI accessories supplied with the machine
User documentation, where supplied with the product

Warranty

Why Buy from Sewing.sg?

Get assistance from Ban Soon when selecting and learning to use your sewing equipment. Contact our team to confirm which services and benefits apply to your machine purchase.

Training & Workshops

Ask about available machine-operation guidance, training and sewing workshops.

Customer Support

Contact our team for product guidance, troubleshooting assistance and service enquiries.

Trade-In Enquiries

Ask about trade-in options for eligible existing sewing machines.

Product Demonstration

Payment Options

Ask about available payment methods and whether instalment options apply to your purchase.

Training Assistance

Ask our team about available training arrangements for your machine and purchase package.

Warranty & Servicing

Check the applicable warranty terms and available servicing support for your machine.

Enquire About the JUKI LU-1509NS

Need help choosing an industrial sewing machine for leather, canvas, upholstery or other heavy materials? Contact Ban Soon Sewing Machine Pte. Ltd. to discuss your application, material thickness, thread requirements and machine configuration.

Company: Ban Soon Sewing Machine Pte. Ltd.

Address: 431 Clementi Avenue 3, #01-328, Singapore 120431

Phone: 6776 3253

Email: contact@sewing.sg

Website: www.sewing.sg

Enquire on WhatsApp Call Ban Soon

Specifications, accessories, package contents, payment options, training and warranty terms are subject to confirmation by Ban Soon and the applicable manufacturer or sales documentation.
