The following figures are based on the supplied series information. Specifications are not universal across all subclasses.
| Specification |
Details |
| Machine Series |

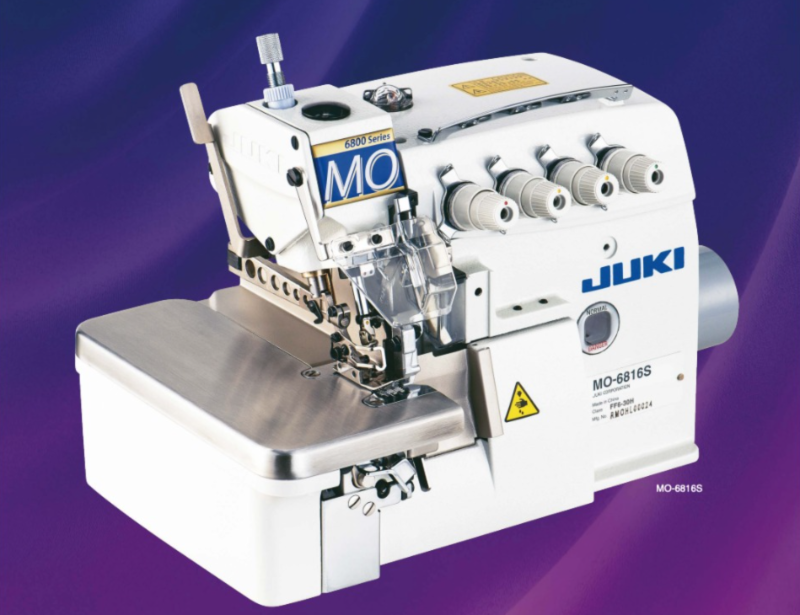

JUKI MO-6800AS(D)/DD Series |
| Machine Type |
Industrial overlock and safety stitch; stitch configuration varies by subclass |
| Maximum Sewing Speed |
Up to 7,000 stitches per minute on specified models |
| Stitch Length |
Listed range: 0.6–3.8 mm; certain models may support up to 4.5 mm |
| Needle Bar Stroke |
24.5 mm; 27 mm on certain configurations |
| Needle System |
DC × 27 or DC × 1, depending on subclass |
| Presser Foot Lift |
Up to 7 mm on specified models |
| Presser Foot Pressure |
Listed maximum: 63.7 N (approximately 6.5 kgf) |
| Differential Feed Ratio |
Gathering: up to 1:2, with a listed maximum of 1:4 on applicable models. Stretching: down to 1:0.7, with a listed maximum of 1:0.6. Range depends on the subclass. |
| Approximate Head Weight |
Approximately 27 kg; confirm for the exact model |
| Lubrication |
Automatic lubrication using JUKI Machine Oil 18 (ISO VG18) on applicable models; AD configurations may use a semi-dry arrangement |
| Needle Cooler & Thread Heat Remover |
Listed as standard equipment in the supplied series information; confirm model-specific inclusions |
| Motor & Control |
DD configurations feature direct-drive technology; verify the motor and control package before ordering |
Important model-selection note: MO-6800AS(D)/DD covers different configurations. Needle system, stitch type, maximum speed, stitch length, cutter, sensor functions, lubrication arrangement and accessories can differ by subclass. Please confirm the complete model code and official JUKI specification before purchase.
Suitable Applications
Knitwear & Stretch Fabrics
T-shirts, polo shirts, jerseys, activewear and other knitted garments, subject to the selected stitch configuration.
Woven Garments
Dresses, shirts, workwear, uniforms and other garment construction applications.
High-Volume Production
Garment factories, CMT operations and professional workshops seeking repeatable production workflows.
Specialised Sewing Operations
Safety stitching, rolled hems, tape-related operations and multi-needle overlocking where supported by the selected subclass and attachments.
