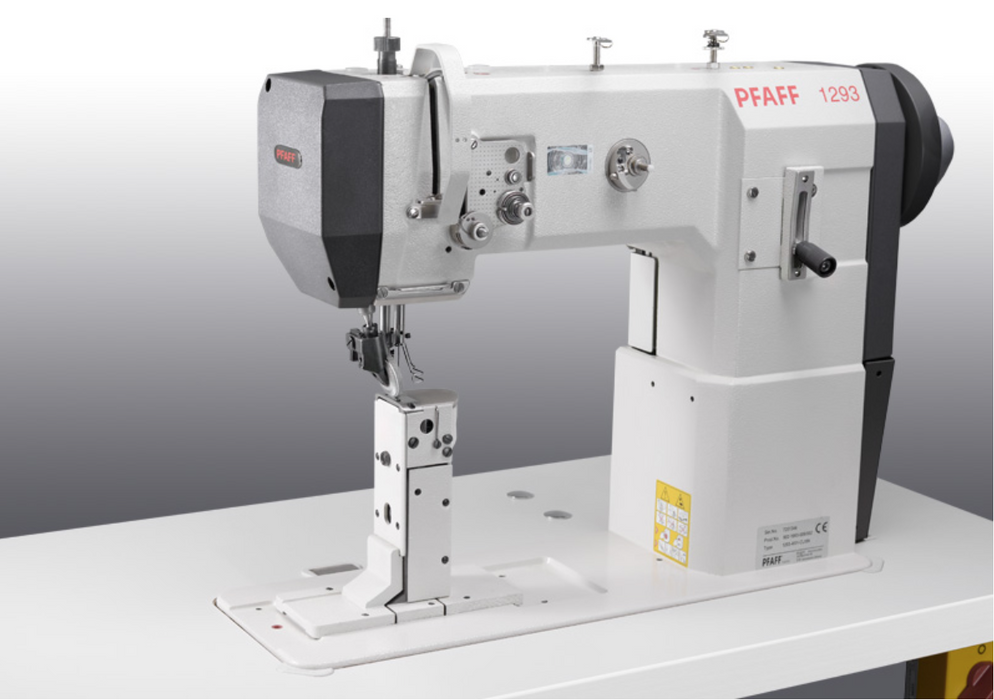

PFAFF 1293-4/01 Single-Needle Post-Bed Sewing Machine
The PFAFF 1293-4/01 is a heavy-duty single-needle, lockstitch post-bed sewing machine designed for precision sewing on medium-heavy to heavy materials. Featuring a large vertical hook, drop feed and retractable roller presser with direct drive, this machine delivers reliable material handling and consistent stitch quality for demanding industrial sewing applications.
The roller presser drive is designed to provide smooth and controlled feeding when sewing across seam intersections and thick spots, helping maintain a consistent stitch length. The large vertical hook offers approximately 60% more thread capacity, reducing the frequency of bobbin changes and supporting efficient production.
Key Features
-
Excellent Seam Quality: Produces clean and consistent seams for rope-stitch, ornamental and assembly sewing applications.
-
Roller Presser with Direct Drive: The retractable roller presser provides positive material feeding and enables smooth topstitching across seam intersections without changing the stitch length.
-
Consistent Stitch Length: Maintains uniform stitch length even when sewing over thick sections of material.
-
Superior Stitch Formation: Optimised machine kinematics and a bobbin-case opener support reliable and consistent stitch formation.
-
Positive Power Transmission: A proven toothed-belt drive provides dependable and efficient power transmission.
-
Large Vertical Hook: Provides approximately 60% greater thread capacity, helping reduce bobbin-change frequency.
-
Integrated Overload Protection: The hook is protected by an easy-to-operate overload clutch incorporated into the machine as standard.
-
Automatic Hook Lubrication: Helps maintain smooth hook operation and simplifies routine maintenance.
-
Infinitely Variable Stitch Length: Stitch length can be adjusted easily and continuously according to the application.
-
Built-In Bobbin Winder: Conveniently positioned within the operator's view for easy monitoring.
-
Pneumatic Roller Presser Disengagement: During reverse sewing, the roller presser drive is pneumatically disengaged.
-
Easy Maintenance: Designed for straightforward servicing and maintenance.
-
Common Parts Across the Series: Similarity of parts throughout the series simplifies servicing and parts management.
Applications
The PFAFF 1293-4/01 is designed for sewing shoe uppers and other leather articles made from medium-heavy to heavy materials.
- Shoe uppers
- Leather goods
- Heavy leather articles
- Medium-heavy materials
- Heavy-duty industrial sewing
- Rope-stitch and ornamental seams
- Assembly and topstitching applications
