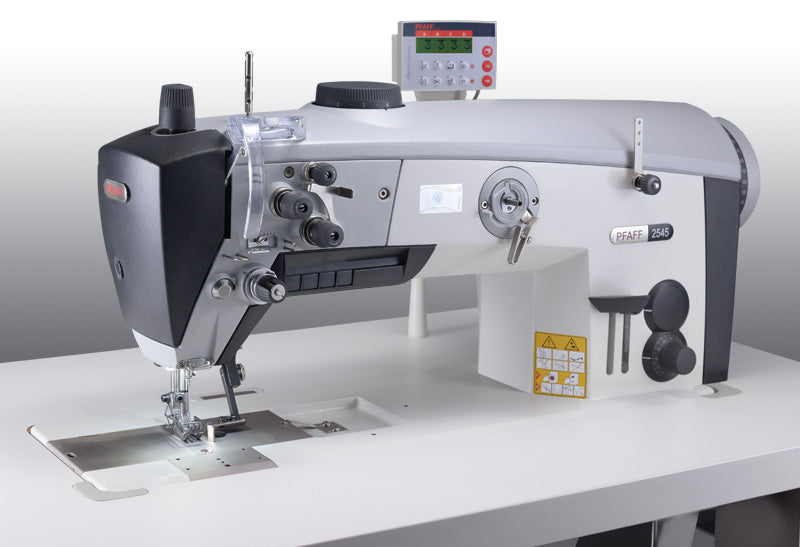

PFAFF 2545-G-6/01 CLPMN9 Basic Industrial Sewing Machine – High-Speed Triple Feed Flat-Bed Lockstitch
The PFAFF 2545-G-6/01 CLPMN9 Basic is a high-performance industrial single-needle flat-bed lockstitch sewing machine designed for medium-heavy sewing applications. Part of the PFAFF POWER LINE 2545 series, this machine combines high-speed sewing performance with a sophisticated triple-feed system consisting of bottom feed, needle feed, and alternating top feed.
Equipped with a vertical hook, large working area, powerful feeding mechanism, and advanced operator controls, the PFAFF 2545 provides excellent stitch quality on both visible top-stitching and assembly seams. It is suitable for a wide range of applications involving textiles, leather, upholstery materials, and other medium-heavy sewing materials.
The POWER LINE 2545 series is designed with ergonomics and operator convenience in mind. Easy-to-use controls, adjustable top feed, programmable functions, automatic sewing functions, and integrated LED lighting provide flexibility and efficiency in demanding industrial sewing environments.
Applications
- Universal industrial sewing operations
- Medium-heavy duty sewing applications
- Leather sewing
- Home upholstery
- Automotive upholstery
- Assembly and securing seams
- Top-stitching applications
- Other medium-heavy textile and upholstery applications
Key Features
-
Triple Feed System: Bottom feed, needle feed, and alternating top feed provide excellent material handling and consistent feeding.
-
Vertical Hook: Designed for reliable industrial sewing performance.
-
High Stitch Quality: Produces precise stitches for both visible top-stitching and internal assembly seams.
-
Adjustable Top Feed: Top feed stroke can be adjusted up to 9 mm.
-
Large Clearance: 345 x 120 mm workspace under the machine arm provides excellent handling of larger workpieces.
-
Presser Foot Lift: Up to 20 mm for accommodating thicker sewing materials.
-
Maximum Stitch Length: Up to 12 mm.
-
High-Speed Sewing: Maximum sewing speed of up to 3,800 stitches per minute.
-
Programmable Multi-Switch: Conveniently positioned for easy operator access.
-
Automatic Functions: Thread trimming, presser foot lifting, and backtacking are electro-pneumatically controlled.
-
Thread Nipper: Electro-pneumatically controlled for efficient sewing operations.
-
Second Thread Tension: Electro-pneumatically controlled.
-
Bobbin Winder: Integrated winding assistant supports a quick and secure start to the winding process.
-
Overload Safety Clutch: Helps protect the machine against mechanical overload.
-
Integrated LED Lighting: Dimmable LED light provides clear illumination of the sewing area.
-
Two Stitch Lengths: Available through the operating element in the operator handle area.
-
Easy Maintenance: Top arm and head covers can be removed after loosening only three screws, providing quick access for adjustments and servicing.
-
Scale Disk: Provides an adjustment aid for needle bar rise, needle height, and take-up lever settings.
Model Configuration
-
2545: Machine head design / machine model
-
G: Extra-large hook
-
6/01: Standard part set
-
C: Configuration for medium-heavy materials
-
P: Four-motion drop feed and top feed machine
-
L: Configuration for leather sewing; machine supplied with LR needle system
-
M: Overload safety clutch
-
N9: Maximum stitch length designation of 9 mm for the specified top-feed adjustment
Specifications
-
Machine Type: Industrial Single-Needle Flat-Bed Lockstitch Machine
-
Feed System: Triple Feed – Bottom, Needle & Alternating Top Feed
-
Stitch Type: 301 Lockstitch
-
Needle System: 134-35
-
Needle Size: C 110–140 Nm / D 150–200 Nm
-
Maximum Sewing Speed: 3,800 stitches/min
-
Maximum Stitch Length: 12.0 mm
-
Maximum Top Feed Stroke: 9.0 mm
-
Maximum Thread Thickness: C 15/3 / D 8/3
-
Presser Foot Lift: Up to 20 mm
-
Clear Workspace: 345 x 120 mm
-
Hook: Vertical Extra-Large Hook
-
Power Supply: Single-Phase AC 230 V, 50/60 Hz
Export Packing Information
-
Packing Dimensions: 102 x 42 x 73 cm
-
Gross Weight: 88.5 kg
-
Net Weight: 78.5 kg
Production Address
PFAFF Industrial Sewing Machine (Zhang Jiagang) Co., Ltd.
No. 8 Miaoqiao Middle Road, Tangqiao Town,
Zhangjiagang City, Jiangsu Province,
China 215600.
