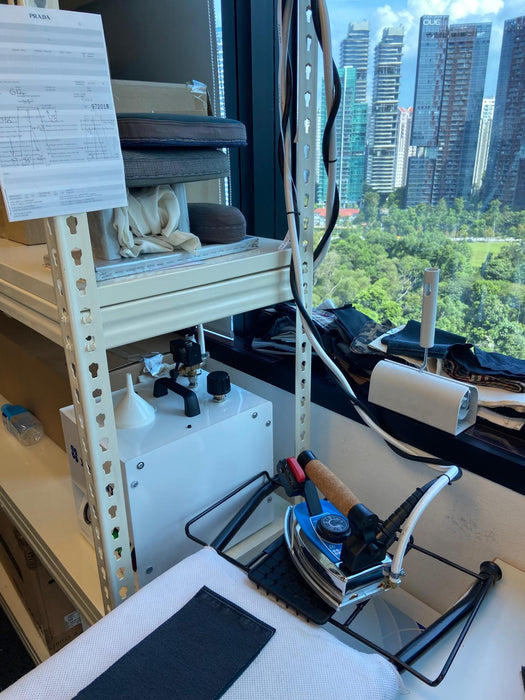

Rotondi MINI 45 Professional Steam Ironing System
The Rotondi MINI 45 is a compact yet powerful professional steam ironing system designed for tailoring shops, garment workshops, laundries, fashion studios, and textile production environments. Equipped with a high-performance steam generator and professional-grade steam iron, the MINI 45 delivers consistent steam output for efficient pressing and finishing of garments.
Its durable steel construction, multiple safety features, and reliable steam generation make it an excellent solution for businesses requiring professional ironing performance in a space-saving design. Art No. R109
Key Features
- Professional steam ironing system with integrated steam generator
- 3.8-litre water capacity
- 5-litre boiler capacity for continuous steam production
- Operating steam pressure of 2.8–3 BAR

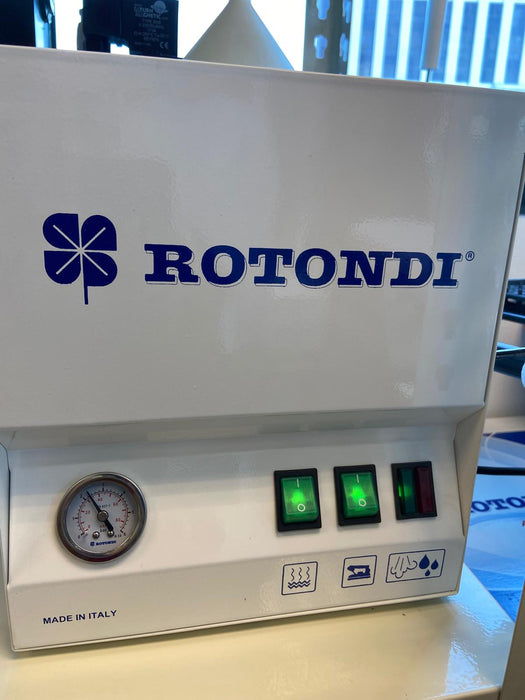

- Pressure gauge (manometer) for easy monitoring
- Professional-grade 800W steam iron included
- 1700W external heating element for fast steam generation
- Heavy-duty painted steel structure
- Compact footprint suitable for workshops and sewing rooms
Efficient Steam Performance
The MINI 45 generates consistent steam pressure between 2.8 and 3 BAR, providing excellent penetration through fabrics for professional-quality ironing and garment finishing.
- Fast steam generation
- Consistent steam output
- Suitable for medium and heavy fabrics
- Professional pressing results
Water volume: Mini 3 roughly 2 litres; Mini 45 roughly 3.2 litres.
Water droplets will be discharged when there is too much water in the Boiler Tank, or from the condensed steam vapour in the pipe.
Mini steam iron setup guide
- Mini steam iron with boiler: procedure to prevent water droplets during ironing
Initial Heat-Up Steps
- Set iron shoe temperature to cotton or wool
- Let boiler heat up to required pressure from room temperature
- Place iron on silicone rest, then press and hold steam switch for 8 seconds
- Heats the hose and iron shoe
- Prevents steam condensation on discharge
- Repeat up to twice depending on room temperature
Resuming After Idle Periods
- Seamstress cannot iron continuously (needs time to align fabric on ironing board)
- If idle for 3 minutes or more, repeat the warm-up steps
- Place iron on rest, depress steam switch for 8 seconds
- Water droplets will visibly accumulate on the iron rest
- Safe to use on workpiece once 8 seconds complete
Key Rule
- Every time the iron is left idle: lift onto iron rest, activate steam for 8 seconds before resuming work
迷你蒸汽熨斗使用指南
- 带独立锅炉的迷你蒸汽熨斗：熨烫过程中防止滴水的操作步骤
初始预热步骤
- 将熨斗底板温度设定为“棉”或“羊毛”档位
- 让锅炉从室温加热至所需压力
- 将熨斗放置在硅胶底座上，按住蒸汽开关 8 秒钟
- 此步骤可预热蒸汽软管和熨斗底板
- 防止蒸汽在喷出时冷凝成水滴
- 根据室温情况，可重复上述步骤最多两次
暂停后的恢复操作
- 实际操作中往往无法连续熨烫（需花时间在熨衣板上摆放和调整衣物）
- 若闲置 3 分钟或更长时间，请重复预热步骤
- 将熨斗放回底座，按住蒸汽开关 8 秒钟
- 此时熨斗底座上会出现可见的水滴积聚
- 8 秒结束后，即可安全地在衣物上进行熨烫
关键规则
- 每次暂停使用时：请将熨斗放回底座，并在恢复工作前按住蒸汽开关 8 秒钟进行预热
Set the Thermostat to Cotton, this a safer range to use the Iron.
将熨斗恒温器调至棉质模式，这是使用熨斗更安全的温度范围。
Enhanced Safety Features
Designed with operator safety in mind, the Rotondi MINI 45 incorporates multiple protective systems to ensure safe and reliable operation.
- Double safety valve protection
- Double safety thermostat
- Integrated thermal fuse protection
- Pressure monitoring via manometer
Professional Applications
- Tailoring and alteration shops
- Fashion design studios
- Garment manufacturing
- Laundry and dry-cleaning businesses
- Textile workshops
- Uniform production
- Sample room operations
- Professional pressing and finishing
Technical Specifications
| Model |
Rotondi MINI 45 |
| Water Capacity |
3.8 Litres |
| Steam Generator Volume |
5 Litres |
| Steam Pressure |
2.8 – 3 BAR |
| Pressure Gauge |
Manometer Included |
| Heating Element |
External Heating Element |
| Boiler Power |
1700W |
| Iron Power |
800W Professional Steam Iron |
| Structure |
White Painted Steel Construction |
| Safety Features |
Double Safety Valve, Double Thermostat, Thermal Fuse |
Why Choose the Rotondi MINI 45?
- Professional steam ironing performance
- Reliable and durable construction
- Compact design for space efficiency
- Multiple built-in safety systems
- Powerful steam generation for demanding applications
- Ideal for tailoring, garment production, and laundry operations
