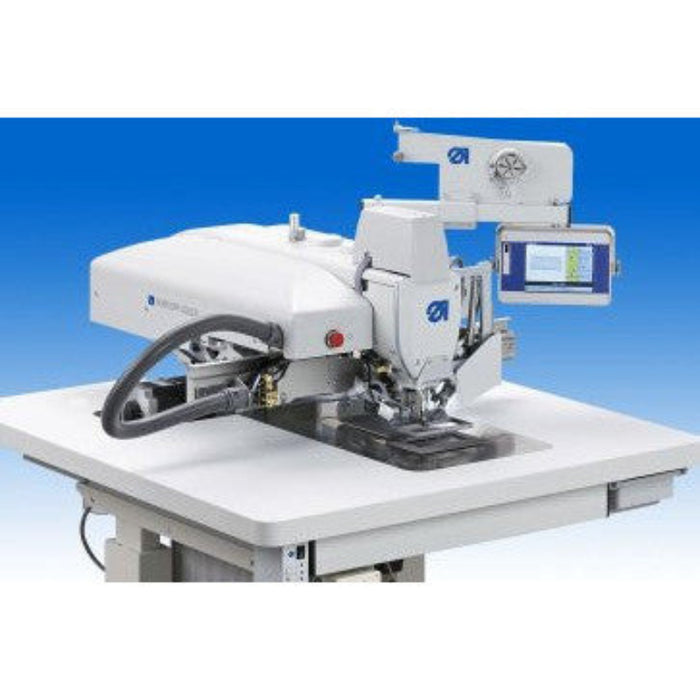

Dürkopp Adler 911-211-2010 CNC-Controlled Pattern Stitcher – Heavy-Duty Industrial Sewing Machine
The Dürkopp Adler 911-211-2010 is a CNC-controlled pattern stitcher designed for medium-heavy to heavy-duty sewing applications. Built around robust construction and proven Dürkopp Adler M-TYPE sewing technology, this industrial machine is engineered to handle demanding materials, thick threads, reproducible safety seams, functional seams, and decorative stitching.
The 911-211-2010 combines high sewing performance, programmable pattern control, flexible material clamping, electronic thread tension, automatic thread trimming, and intuitive touchscreen operation. It is particularly suitable for technical textiles, leather goods, protective products, and other applications where consistent and repeatable stitching is essential.
Dürkopp Adler 911-211-2010 Key Features
-
CNC-controlled pattern stitcher for heavy-duty applications
- Improved M-TYPE sewing technology with high application flexibility
- Maximum sewing field of 200mm × 100mm
- 867 sewing head with XXL vertical hook
- Electromagnetic short thread trimmer
- Electronic thread tension programmable per stitch
- Needle thread monitoring with automatic sewing stop
- Programmable sewing foot height driven by step motor
- XY material clamp carrier mounted at the sewing head
- Touchscreen control panel with intuitive operating software
- Up to 99 different sewing programs
- Motor-driven bobbin winder
- Table stand measuring 940mm × 1100mm
Heavy-Duty Sewing Equipment
The Dürkopp Adler 911-211-2010 is designed for applications where conventional sewing technology may be pushed to its limits. Its robust construction and high-performance components allow it to process demanding combinations of thick fabrics, technical textiles, leather, and heavy sewing threads.
The machine is suitable for reproducible safety seams, functional seams, and decorative patterns where consistent stitch quality and programmable production are required.
911 E 10 Heavy Material Sewing Equipment
- Equipment configuration for heavy materials
- Parallel clamp or change clamp options
- Throat plate with 3.2mm needle hole diameter
- Presser foot suitable for heavy-material applications
- Needle sizes Nm 140–180
911-K07-2010 Clamp Assembly
The 911-K07-2010 Clamp Assembly includes a stationary clamp with bow adaptation and a one-piece material clamp for semi-finished parts.
-
Sewing field: 200mm × 100mm (X × Y)
- Stationary clamp configuration
- Designed for controlled and repeatable material positioning
Programmable Pattern Sewing
The 911-211-2010 provides flexible programming directly through the touchscreen control panel or through external PC software. This allows users to create, edit, store, and reproduce sewing patterns for consistent production.
DA-CAD 5000 Software
DA-CAD 5000 is the Dürkopp Adler software application used to create and edit seam programs. It allows users to load contours in DXF format or modify existing seam programs on a PC.
Completed seam programs can be saved to a USB memory stick and subsequently transferred to the machine control system.
Production Advantages
-
Flexible programming: Teach-in programming directly through the touchscreen or external PC programming software.
-
Large bobbin capacity: XXXL vertical hook with approximately 40mm diameter and up to 26m of 8/3 thread on the bobbin.
-
Low maintenance: Proven M-TYPE sewing technology helps support reliable operation.
-
High productivity: Maximum sewing speed of up to 2,000 stitches per minute.
-
Programmable signals: Input/output signals can be programmed for individual stitches.
-
Consistent stitch formation: Electronic thread tension can be programmed for individual stitches.
-
Heavy thread capability: Thread cutting system supports thread sizes up to 5/3, with thread burning devices available as an option.
-
Thread break detection: Automatic sewing stop when thread breakage is detected.
-
Bobbin monitoring: Bobbin thread capacity can be monitored by stitch counting or thread consumption control.
-
Thread consumption recording: Intelligent thread counter records programmable thread lengths for patterns.
-
Programmable stroke adjustment: Helps accommodate different material ply thicknesses.
Operator Advantages
- Intuitive touchscreen menu navigation for machine functions
- Seam contours displayed directly on the screen
- Pattern size and position can be adjusted directly at the machine
- Memory capacity for up to 99 seam programs
- Up to 20,000 stitches per seam program
- Up to 30 different seam patterns can be programmed per sewing cycle/sequence
- Up to 20 different sewing sequences can be programmed
Technical Specifications
| Specification |
Details |
| Brand |
Dürkopp Adler |
| Model |
911-211-2010 |
| Machine Type |
CNC-Controlled Pattern Stitcher |
| Application |
Medium-Heavy & Heavy-Duty Sewing |
| Sewing Field |
200mm × 100mm |
| Maximum Sewing Speed |
2,000 stitches/min. |
| Maximum Thread Size |
Nm 5/3 |
| Hook |
XXXL Vertical Hook, approximately Ø40mm |
| Bobbin Capacity |
Approximately 26m of 8/3 thread |
| Needle Size |
Nm 140–180 for 911 E 10 configuration |
| Needle Hole Diameter |
3.2mm |
| Memory |
Up to 99 programs / 20,000 stitches each |
| Table Stand |
940mm × 1100mm |
Standard Configuration & Components
-
911-211-2010: CNC-controlled pattern stitcher complete set
-
867 Sewing Head: Equipped with XXL hook, electromagnetic short thread trimmer, electronic thread tension, and needle thread monitor
-
Programmable Sewing Foot: Step-motor driven height adjustment
-
XY Material Clamp Carrier: Mounted at sewing head
-
Touchscreen Display: Intuitive programming and sewing operation
- Motor-Driven Bobbin Winder
-
911-K07-2010: Stationary clamp assembly with bow adaptation and one-piece material clamp
-
911-5977774: Software-controlled bobbin thread slide for countering loop stitches in highly decorative and multi-directional seam designs
-
797 3031: Pneumatic connection package with 5m hose and necessary fittings
-
DA-CAD 5000: PC software for creating and editing sewing patterns
Optional Equipment
-
0911 597754: Bobbin thread monitor
-
0911 597554: Barcode scanner
-
9835 200352: DA-CAD 5000 software for sewing pattern design and editing
- Thread burning devices
- Additional clamp configurations depending on application
Applications
The Dürkopp Adler 911-211-2010 is particularly suitable for demanding industrial sewing applications involving technical and heavy materials.
- Technical textiles
- Leather goods
- Safety seams
- Functional seams
- Decorative stitching
- Heavy-duty textile products
- Industrial bags and protective products
- Automotive and technical textile applications
- Products requiring repeatable programmable stitching patterns
Why Choose the Dürkopp Adler 911-211-2010?
The Dürkopp Adler 911-211-2010 CNC Pattern Stitcher combines robust industrial construction with advanced programmable sewing technology. Its large sewing field, heavy-thread capability, programmable electronic functions, flexible clamping system, and high production speed make it a powerful solution for demanding technical textile and heavy-material applications.
