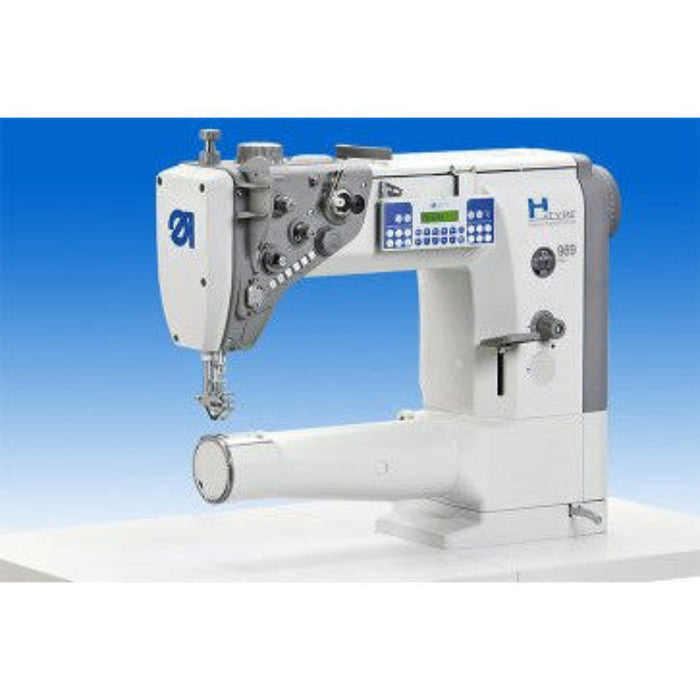

Dürkopp Adler 969-190180 ECO Heavy-Duty Single Needle Lockstitch Cylinder Arm Sewing Machine

The Dürkopp Adler 969-190180 ECO is a heavy-duty single-needle lockstitch cylinder arm sewing machine designed for demanding industrial sewing applications involving heavy materials, thick fabrics, bulky workpieces, and extremely thick sewing threads.

Part of the Dürkopp Adler H-TYPE series, the 969 ECO combines a robust cylinder arm construction with an integrated sewing drive, bottom feed, needle feed, alternating feet, large XL barrel shuttle, long stitch capability, and high presser-foot clearance. It is engineered to deliver strong penetration force, consistent stitch quality, and reliable performance in heavy-duty and technical textile production.

Download Dürkopp Adler 969 ECO Brochure

Key Features

• Machine Type: Heavy-duty single-needle lockstitch cylinder arm machine
• Feed System: Bottom feed, needle feed, and alternating presser feet
• Sewing Drive: Integrated sewing drive for maximum penetration force
• Control System: DAC classic control box with OP1000 operating panel
• Needle Positioning: Electronic needle positioning with Jog-Dial functionality
• Hook: XL barrel shuttle hook with approximately 70% greater bobbin capacity than a standard hook
• Bobbin Winder: Integrated motor-driven bobbin winder with winding assistant
• Maximum Stitch Length: Up to 12 mm
• Maximum Sewing Foot Stroke: Up to 12 mm
• Presser-Foot Lift: Up to 30 mm in the high needle position
• Maximum Sewing Speed: Up to 1,000 stitches per minute
• Heavy Thread Capability: Suitable for extremely thick threads up to Nm 5/3

Designed for Heavy-Duty & Technical Textiles

The H-TYPE Dürkopp Adler 969 ECO was developed to address the demanding requirements of modern heavy-duty sewing applications, particularly where extreme material thicknesses, large workpieces, long stitches, and thick threads are required.

Its cylinder arm design provides improved access when sewing around curved or tubular workpieces, while the powerful integrated sewing drive delivers the penetration force required for demanding materials.

Machine Highlights

• Excellent stitch formation and consistently tight stitches, even when sewing with extremely thick threads up to Nm 5/3.
• Large sewing clearance of approximately 420 mm wide × 225 mm high for handling large-area workpieces.
• Robust cylinder arm construction for demanding industrial sewing applications.
• Up to 12 mm stitch length for assembly and decorative seams.
• Standard electropneumatic sewing foot lift.
• Up to 30 mm presser-foot lift for feeding and removing bulky workpieces.
• XL barrel hook with approximately 70% larger bobbin capacity compared with a standard hook.
• Up to 12 mm sewing foot stroke for safely sewing over different material thicknesses.
• Integrated 6-function keypad with ergonomically arranged favorite key.
• Integrated motor-driven bobbin winder with winding assistant.
• Integrated sewing drive for high penetration force.
• DAC classic control with multifunctional OP1000 control panel.
• Electronic needle positioning with Jog-Dial functionality and electronic handwheel capability.
• Maximum sewing speed of 1,000 stitches per minute.

Technical Specifications

Sewing Equipment & Accessories

• 969 E1/0-9: Sewing equipment for heavy-weight material, needle size Nm 140–200, maximum stitch length 9 mm.
• N800 80041: Combined roller and straight guide, right, hinged and height adjustable, with an adjustment range of 0–42 mm.
• 9880 967001: Integrated LED sewing light with circuit board, two integrated white LEDs, and mounting frame for installation underneath the sewing head.
• 9850 1089: Sewing light transformer for dimmable LED sewing lights, with two independent outputs that can be switched and dimmed. Primary voltage 230V, secondary voltage 24V.
• MG 56-0969410: Stand set with 1,160 × 600 mm tabletop, parted and hinged, with 1 pedal.
• 925+: Maintenance set.

Complete Set

The Dürkopp Adler 969 ECO is available as a complete heavy-duty sewing solution with its dedicated sewing equipment, industrial stand components, guides, lighting and maintenance accessories as specified.

Ideal Applications

The Dürkopp Adler 969-190180 ECO is suitable for professional sewing environments requiring a combination of heavy material handling, high presser-foot clearance, long stitch capability, thick thread performance, and cylinder arm access.

• Heavy-duty industrial sewing
• Technical textiles
• Heavy canvas and tarpaulin
• Bulky and multi-layer materials
• Industrial bags and products
• Curved and tubular workpieces
• Protective and technical textile products
• Heavy assembly and decorative seams

Why Choose the Dürkopp Adler 969 ECO?

The Dürkopp Adler 969-190180 ECO combines robust H-TYPE construction, powerful integrated drive technology, an XL barrel hook, long stitch capability, high presser-foot lift, and cylinder arm versatility. It is built for professional manufacturers and workshops handling demanding heavy-duty sewing applications where dependable penetration force and consistent stitch quality are essential.
