Dürkopp Adler 868-190020-M E3 Post-Bed Industrial Sewing Machine-BanSoon Machine

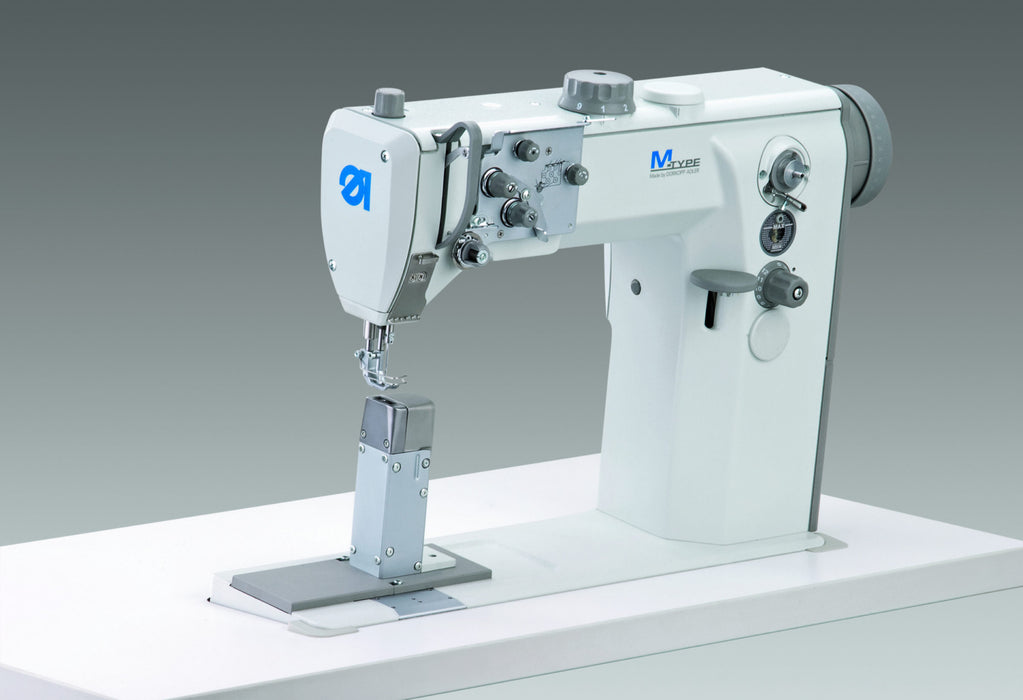

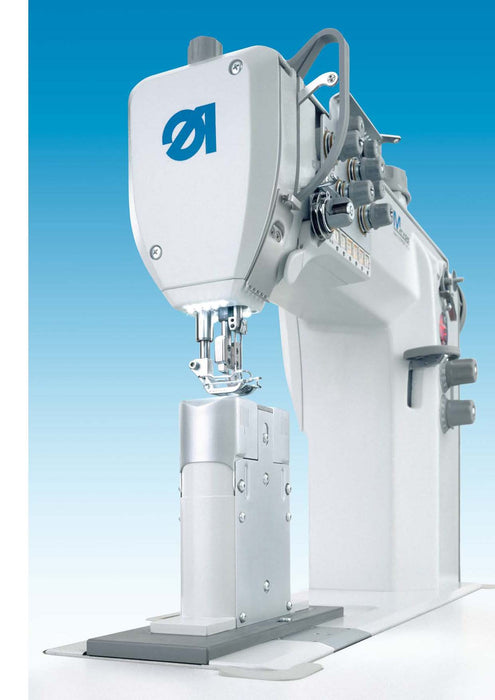

DA868‑190020-M is a high‑performance industrial post‑bed lockstitch machine designed for decorative and functional seams on medium to heavy materials. It features a triple feed system (bottom, needle, and alternating presser feet), integrated direct‑drive motor, and large vertical hook for heavy threads. Ideal for automotive upholstery, leather goods, and furniture production.

Highlights

• 1‑needle lockstitch, post‑bed design
• Triple feed: bottom + needle + alternating feet
• Long stitch length up to 12 mm
• Max speed: 2,500 stitches/min
• Integrated direct‑drive motor with DAC eco control
• Presser foot lift up to 20 mm, alternating foot stroke up to 9 mm
• Large vertical hook with large bobbin for heavy threads
• Needle system 134‑35 (sizes Nm 90–180)
• Thread size support up to Nm 10/3
• Integrated LED lighting (on selected models)

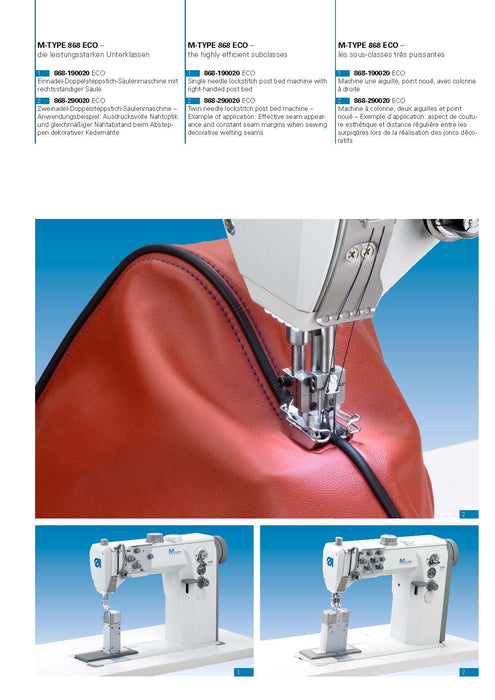

• Automotive seat covers, dashboards, and door panels
• Upholstered furniture
• Leather bags, belts, and accessories
• Decorative top‑stitching on medium‑heavy fabrics

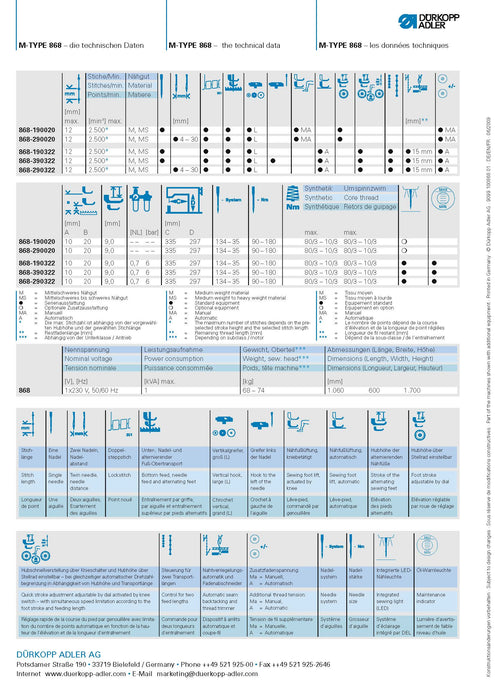

Power supply, Size and Weight:

Nominal voltage: 1 x 230V, 50/60 Hz

Power consumption: 1 kVA (Max)

Weight, Complete Setup with Table & Stand: 105 kg

Dimensions (Length, Width, Height): 1060 x 600 x 1700 mm.

Pluck and Play Setup Packing Data: (Length, Width, Height): 1360 x 900 x 2000 mm; Weight: 225kg. Pack in Heat Treated Plywood Case (ISPM-15 Compliance).

Our specialist can provide training and setup advice tailored to your production needs. Contact +65 6776 3253 for assistance.

• Free BanSoon Care with Machine
• Professional setup & training
• Local technical support and spare parts
