The DURKOPP ADLER M-TYPE H867-290362-70 CLASSIC Goldline Long Arm is a high-performance, reinforced twin-needle lockstitch flatbed machine designed for versatile industrial sewing applications. Its long-arm design, large-capacity 3XL hooks, and powerful feeding system make it particularly suitable for large-area workpieces and demanding assembly and decorative sewing operations.
The machine is equipped with bottom feed, needle feed, and alternating top feet for reliable and effective material feeding. Advanced electropneumatic functions include thread trimming, switchable thread tension, seam backtacking, presser foot lift, and quick stroke adjustment. An integrated LED sewing light and DAC Classic control with OP1000 operating panel further enhance ease of operation and productivity.
Typical Applications
- Assembly seams on large-area workpieces
- Decorative topstitching
- Upholstery and furniture manufacturing
- Automotive upholstery
- Leather goods
- Bags and luggage
- Technical textiles
- Medium- to heavy-weight materials
Key Performance Features
-
Maximum Stitch Length: 12 mm
-
Maximum Sewing Speed: 1,800 stitches/minute
-
Maximum Needle Distance: 90 mm
-
Maximum Workpiece Thickness: 15 mm
-
Maximum Presser Foot Clearance: 25 mm
-
Maximum Thread Size: Nm 8/3
-
Throat Width: Approximately 13.2 inches (13 1/4 inches)

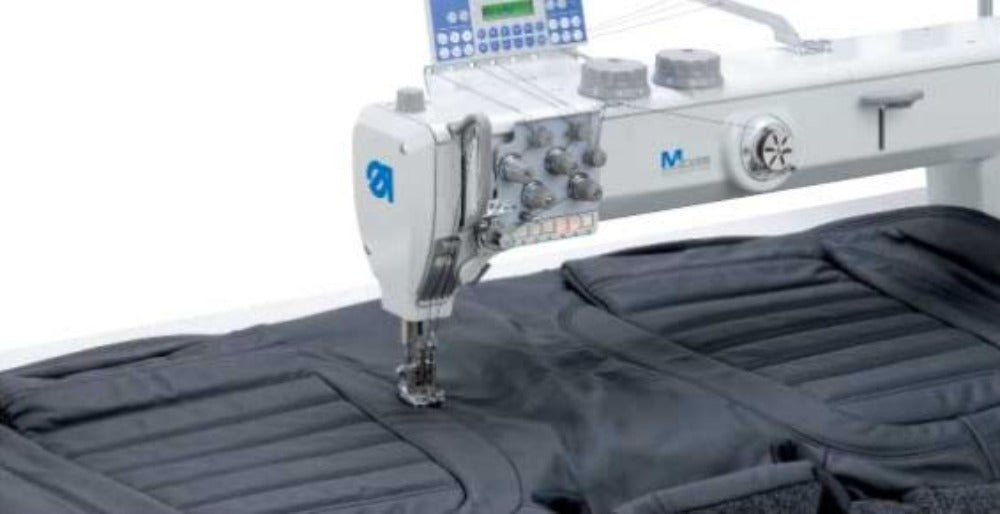

Long-Arm Design for Large Workpieces
The H867-290362-70 features a generously sized workspace of approximately 700 mm wide × 157 mm high. This large clearance makes it easier to position, guide, and manoeuvre large and bulky workpieces during sewing.
Powerful Feeding System
The combination of bottom feed, needle feed, and alternating top feet provides powerful and effective material feeding. This system helps maintain consistent stitch quality when working with multiple layers and materials of varying thicknesses.

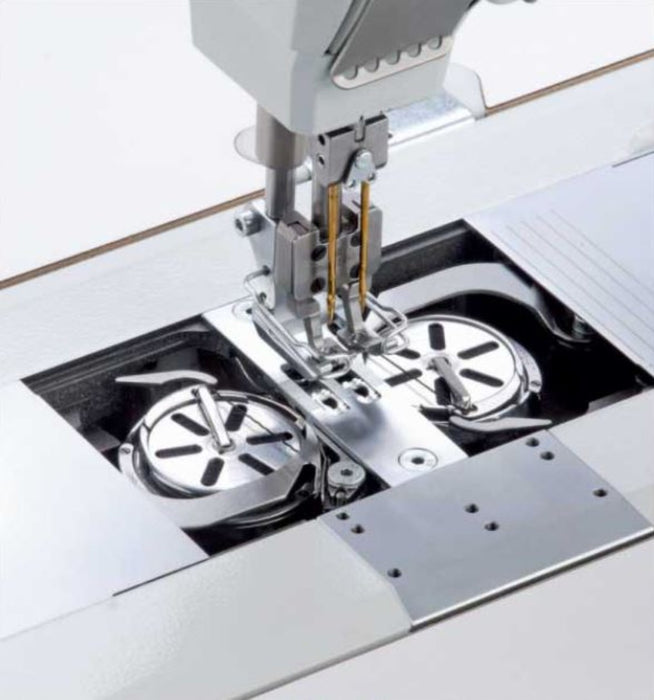

Large-Capacity 3XL Hook System
The optimized 3XL hook system with Ø40 mm bobbins provides increased thread capacity and supports thread sizes up to Nm 8/3. The large bobbin capacity helps reduce bobbin-change frequency and supports efficient continuous production.
Advanced Automatic Functions
- Electropneumatic thread trimmer
- Electropneumatic seam backtacking
- Electropneumatic sewing foot lift
- Electropneumatic quick stroke adjustment
- Switchable thread tension
- Integrated second stitch length
- Integrated LED sewing light
Reinforced Construction
Designed for demanding industrial environments, the reinforced H867-290362-70 provides the stability and material-handling capability required for medium- to heavy-duty sewing applications. The high presser foot clearance and adjustable foot stroke make feeding and removing bulky workpieces easier.
DAC Classic Control & OP1000 Panel
The integrated DAC Classic sewing drive and OP1000 operating panel provide modern control technology for precise machine operation. The network-capable system is designed with Industry 4.0 readiness, making the machine suitable for modern professional production environments.
Technical Specifications
| Model |
DURKOPP ADLER M-TYPE H867-290362-70 CLASSIC Goldline |
| Machine Type |
Twin-Needle Lockstitch Flatbed Machine |
| Version |
Reinforced Long-Arm Version |
| Needle Configuration |
Twin Needle |
| Feeding System |
Bottom Feed, Needle Feed & Alternating Top Feet |
| Hook System |
3XL Large-Capacity Hook, Ø40 mm Bobbin |
| Maximum Stitch Length |
12 mm |
| Maximum Sewing Speed |
1,800 stitches/minute |
| Maximum Needle Distance |
90 mm |
| Maximum Workpiece Thickness |
15 mm |
| Maximum Presser Foot Clearance |
25 mm |
| Maximum Thread Size |
Nm 8/3 Fine Quality Polyester or Nylon Thread |
| Maximum Throat Width |
Approx. 13.2 inches (13 1/4 inches) |
| Workspace |
Approx. 700 mm wide × 157 mm high |
| Control System |
DAC Classic with OP1000 Operating Panel |
| Sewing Light |
Integrated LED |
Available Configurations
-
H867-190362-70: Single-needle version
-
H867-290060: ECO twin-needle version
-
H867-190060: ECO single-needle version
Accessories
Note: Accessories and included equipment may vary. The manufacturer reserves the right to change the contents or replace accessories with items of equivalent value without prior notice.
Please refer to the product manual for the complete list of included accessories and optional equipment.
Videos
Product videos and demonstrations may be provided to help customers understand the machine's operation and capabilities.
Service & Repair
BanSoon Sewing Machine provides professional installation, servicing, repair, spare parts, and technical support for industrial sewing machines. For enquiries regarding the DURKOPP ADLER M-TYPE H867-290362-70, please contact us.
