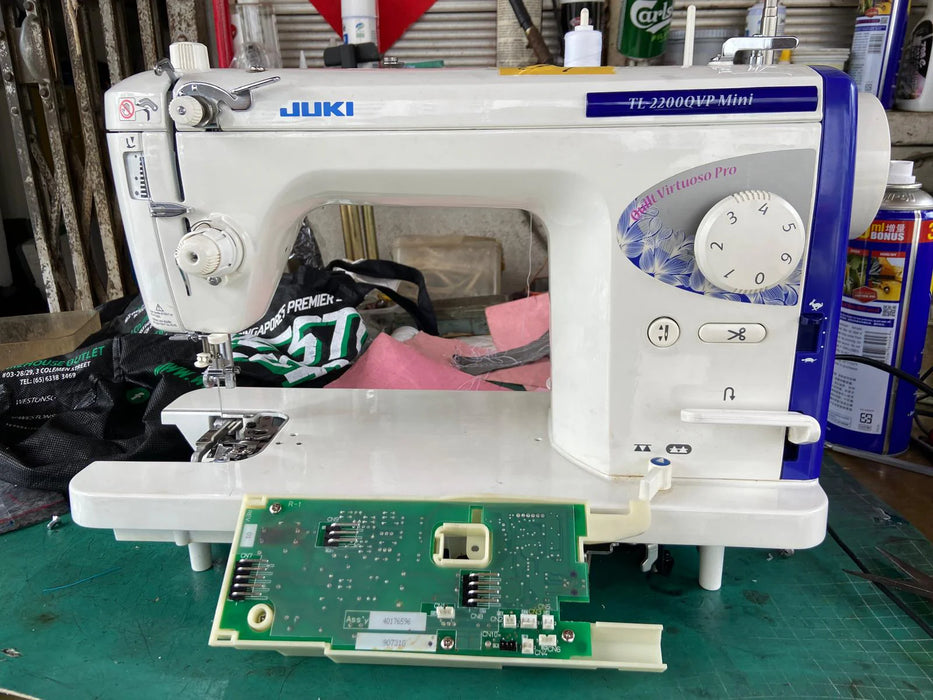

Juki filter Board PCB of the TL:2200QVP-A403598PXA0A

The filter board in the Juki TL-2200QVP ( Part No.-A403598PXA0A) is crucial for maintaining the machine's electrical stability. It filters out electrical noise that can be generated by the motor and other electronic components, which is especially important in high-speed sewing operations. This helps to prevent glitches or erratic behavior in the machine's electronics.

Components:

• Capacitors: Help in smoothing out power supply fluctuations.
• Inductors: Suppress electrical noise and interference.
• Resistors: Assist in regulating the current flow and further filtering noise.
