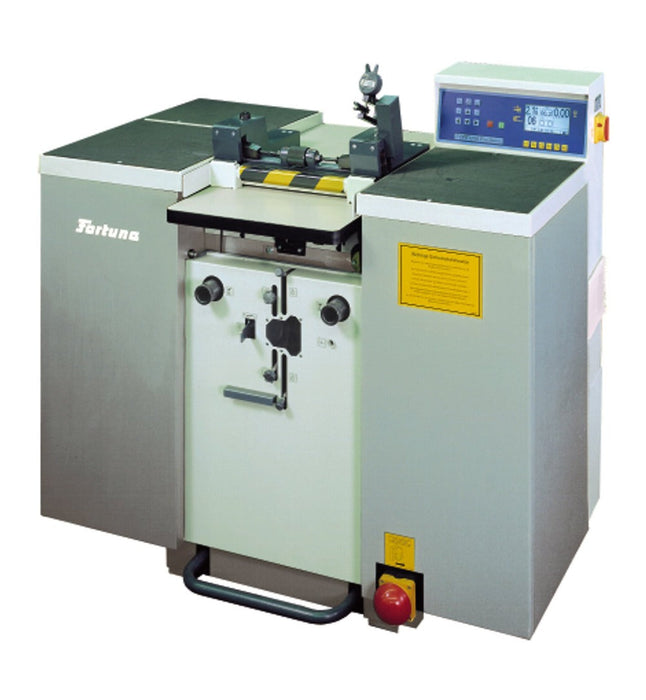

Fortuna AB 320 / AB 320E Digital Bandknife Splitting Machine – 320 mm Working Width
Precise material thickness reduction. Adjustable feed speed. Industrial splitting performance.
The Fortuna AB 320 / AB 320E Digital Bandknife Splitting Machine is an industrial material-processing machine designed to split leather and other compatible materials to a required thickness. It is suitable for professional manufacturing environments where consistent material preparation is important.
With a specified 320 mm working width, driven upper presser roll, rubber feed roll, scrap suction system and stepless electronic feed-speed adjustment, the AB 320 series is designed to support controlled material feeding and efficient splitting operations.
Key Features
320 mm Working Width
Provides a working width of 320 mm for processing suitable leather pieces and other compatible materials.
Digital Machine Series
The AB 320 / AB 320E series is specified as a digital-type industrial bandknife splitting machine. Confirm the exact features of the selected version.
Adjustable Feed Speed
Stepless electronic feed adjustment from 2.2 to 24.6 m/min, as supplied in the specifications.
Driven Upper Presser Roll
Supports controlled feeding of material through the splitting area.
Rubber Feed Roll
Helps transport compatible materials through the machine during processing.
Scrap Suction System
A suction device is specified for removing splitting waste from the working area.
Precise Thickness Splitting
The Fortuna AB 320 / AB 320E is intended for reducing material thickness to suit downstream manufacturing processes. The supplied specifications list splitting thicknesses from a minimum of 0.2 mm with a guide or 0.5 mm with a roll, up to a maximum of 8.0 mm.
Actual results depend on the material type, condition, consistency, machine setup and selected processing method. Confirm the suitable configuration and achievable thickness range for your intended application before purchase.
Electronic Feed-Speed Adjustment
The specified stepless electronic feed drive offers a feed-speed range of 2.2–24.6 metres per minute. Adjustable feeding gives operators flexibility when preparing different compatible materials and production requirements.
The appropriate operating speed should be selected according to the material, desired splitting result and machine setup.
Ideal Applications
The Fortuna AB 320 series is intended for industrial material preparation and thickness reduction in applications such as:
- Shoe and footwear manufacturing
- Leather goods production
- Leather processing workshops
- Compatible rubber materials
- Compatible plastic materials
- Automotive interior manufacturing
Technical Specifications
| Brand |
Fortuna |
| Model |
AB 320 / AB 320E Digital Type |
| Machine Type |
Industrial bandknife splitting machine |
| Working Width |
320.0 mm |
| Minimum Splitting Thickness with Guide |
0.2 mm |
| Minimum Splitting Thickness with Roll |
0.5 mm |
| Maximum Splitting Thickness |
8.0 mm |
| Feed Speed |
2.2–24.6 m/min, stepless electronic adjustment |
| Motor |
Three-phase motor |
| Feed System |
Driven upper presser roll and rubber feed roll |
| Scrap Removal |
Suction device |
Why Choose the Fortuna AB 320 / AB 320E?
-
Industrial material preparation: Designed for controlled thickness reduction in compatible materials.
-
Wide working area: The 320 mm working width accommodates suitable production pieces.
-
Adjustable feed speed: Stepless electronic adjustment provides flexibility for different processing requirements.
-
Controlled material transport: The specified upper presser roll and rubber feed roll support material feeding.
-
Scrap management: The suction device is designed to assist with removing splitting waste.
-
Multiple industry applications: Suitable for evaluation by shoe, leather goods, rubber, plastics and automotive interior manufacturers working with compatible materials.
Industrial Machine Consultation
Choosing a splitting machine requires consideration of the material, required thickness, production volume and downstream process. Contact Ban Soon to discuss your requirements and confirm whether the Fortuna AB 320 / AB 320E configuration is suitable for your intended application.
