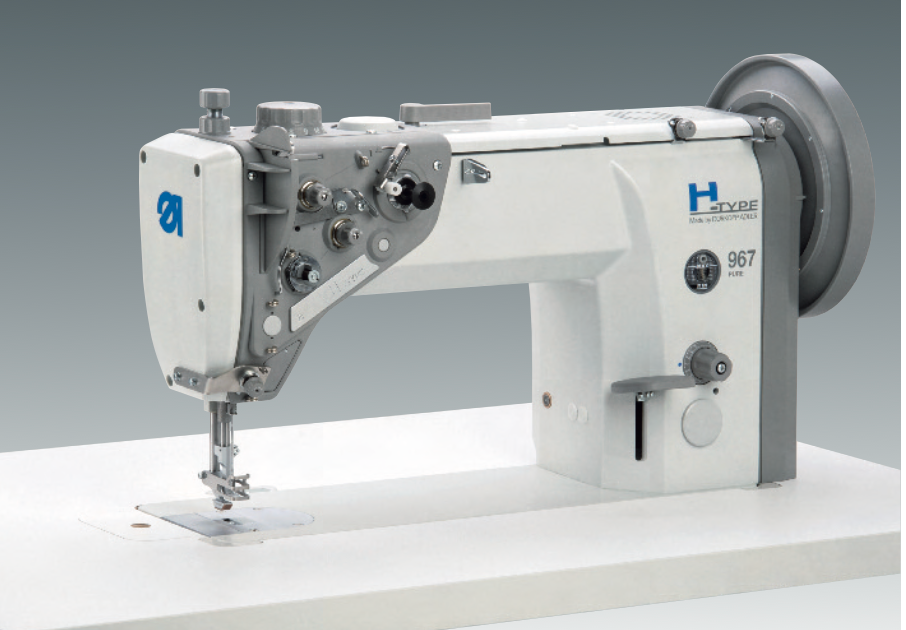

Dürkopp Adler H-TYPE 967-100080 PURE – Heavy-Duty Industrial Sewing Machine

The Dürkopp Adler H-TYPE 967-100080 PURE is a heavy-duty flat-bed industrial sewing machine designed for extreme technical sewing applications. The PURE configuration is equipped with an XL barrel oscillating hook for sewing with extremely thick threads and features a manual sewing foot lift operated via the pedal.

This machine is designed for demanding applications involving very thick materials, bulky workpieces, and heavy-duty sewing threads. It delivers excellent stitch formation and consistently tight stitches while providing the high penetration force and material handling capability required for technical textile production.

Key Features

• PURE Configuration: Flat-bed machine without electrically or pneumatically operated functions.
• XL Barrel Oscillating Hook: Large-capacity hook designed to accommodate extremely thick sewing threads.
• Manual Sewing Foot Lift: Sewing foot is manually operated via the pedal.
• Optional DAC Eco Drive: Can be equipped with DAC Eco control and a drive motor as an optional configuration.
• Extreme Technical Sewing: Developed for demanding technical textile and heavy-material applications.
• Maximum Stitch Length: Up to 15 mm for assembly and decorative seams.
• High Presser Foot Lift: Up to 30 mm for easier handling of bulky workpieces.
• Alternating Top Feed: Up to 12 mm for reliable feeding over different material thicknesses.
• Heavy-Duty Construction: Designed for demanding industrial sewing environments.

XL Barrel Oscillating Hook System

The XL barrel oscillating hook is designed to support sewing with extremely thick threads while maintaining consistent stitch formation. Its large-capacity design makes the H-TYPE 967 PURE particularly suitable for extreme sewing applications where heavy thread and thick materials are required.

Extreme Technical Sewing Performance

The Dürkopp Adler H-TYPE 967 PURE is engineered to deliver excellent stitch quality and consistently tight stitches, even when sewing with extremely thick threads up to Nm 5/3.

Technical Highlights

• Extremely Thick Threads: Excellent stitch formation and consistently tight stitches with thread sizes up to Nm 5/3.
• Large Sewing Clearance: 420 mm wide and 225 mm high. The long-arm version provides up to 1,000 mm of width for handling large-area workpieces.
• Long Stitch Length: Up to 15 mm for assembly seams and decorative stitching.
• High Sewing Foot Lift: Up to 30 mm facilitates feeding and removal of bulky workpieces.

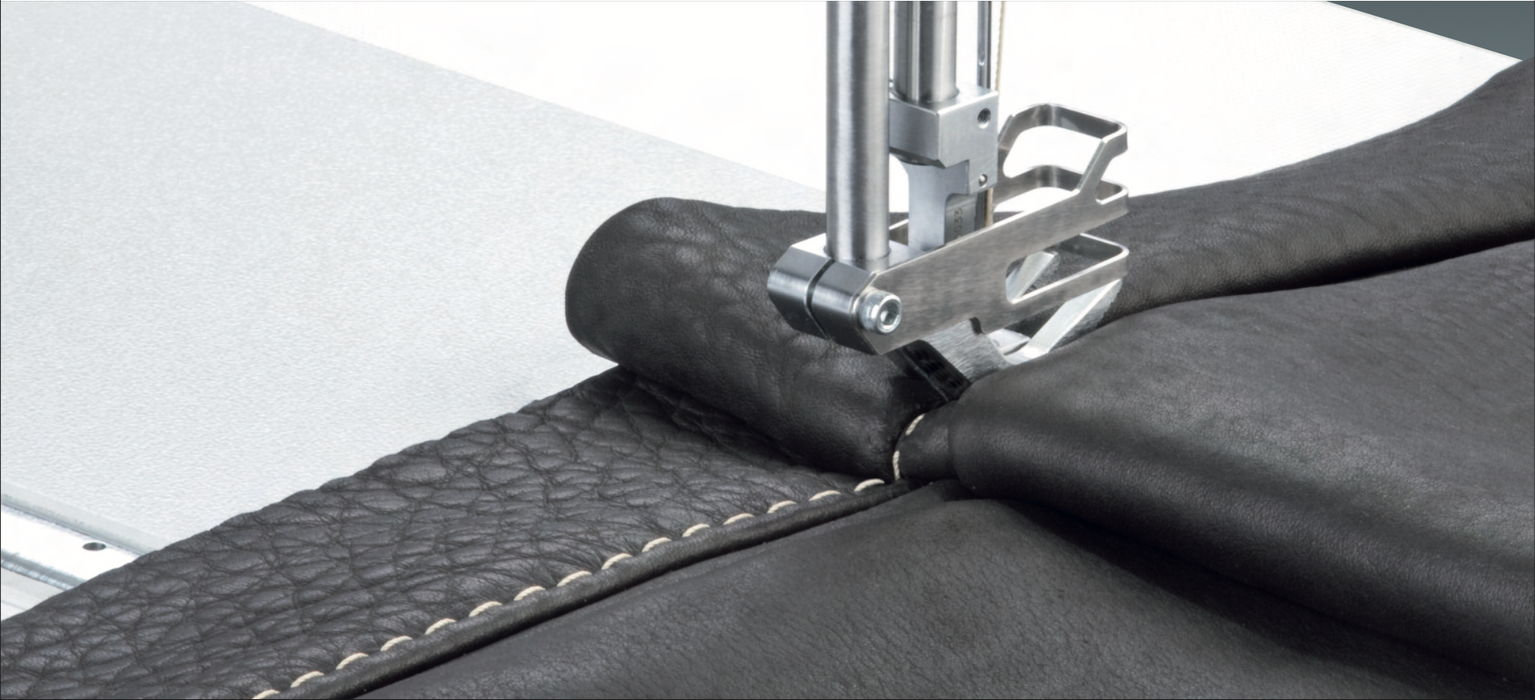

• Alternating Top Feed: Up to 12 mm enables reliable feeding over differently sized material plies.

Presser Foot Height

The inner presser height depends on the selected needle system:

1. Needle System 794: Maximum inner presser height of 19 mm.
2. Needle System 1000H: Maximum inner presser height of 26 mm.

Optional Heavy-Duty Equipment

For particularly demanding heavy-duty applications, optional equipment is available to improve material transport, increase tractive force, and provide more uniform stitch tightening when sewing very thick materials.

The optional triangular eccentric improves feeding performance and stitch consistency in extreme material thicknesses. This equipment is available ex works only and is not available for model 967-100382-100.

PURE Configuration

Ideal Applications

• Technical textile manufacturing
• Extreme heavy-duty sewing
• Industrial upholstery
• Heavy leather products
• Automotive and transportation textiles
• Protective and safety equipment
• Heavy-duty bags and luggage
• Outdoor and marine textiles
• Bulky and multi-layered textile components
• Applications requiring extremely thick sewing threads
