Naomoto FB-130SN Large-Format Ironing Table, Only Vacuum Table, Table Size: 1200X900mm without Buck and Exhaust Chimney(Option).
Delivery: About 60-75 days after receipt of your order confirmation.
1. Application, Functionality & Specialty
The Naomoto FB-130SN is a dedicated large-format flatbed ironing table purposefully built without a buck to provide a massive, unobstructed working area. It is the definitive industry choice for pressing knitted materials, dresses, dress shirts, coats, and large fabric panels.
-
Over-Sized Flat Layout: The expansive 1200mm x 900mm table depth provides ample space to lay out wide garments flat, avoiding the need to continuously shift fabrics and preventing secondary wrinkles.
-
Synchronized Iron System Capability: Features internal circuitry prepared to link seamlessly with a Naomoto steam iron. Air suction activates automatically the moment the operator applies steam, instantly pulling moisture through the fabric.
-
Uniform Vacuum Distribution: Engineered internally to ensure that the 400W vacuum suction is perfectly uniform across the entire surface area, leaving no weak spots at the corners.
2. Five Common Failure Possibilities
-
Uneven Suction Zones: Internal baffle plates can become misaligned or clogged with thick knit fibers, causing dead spots in suction across the wide table surface.
-
Iron Synchronization Relay Failure: The control circuit relay that detects iron usage can burn out, failing to activate the vacuum automatically when steaming.
-
Large Surface Cover Sagging: Due to the large surface area, if the cover tension springs stretch out, the padding will sag, causing uneven pressing results.
-
Exhaust Duct Condensation: The large volume of steam pulled from dresses and knits can condense inside the wide exhaust chamber if ambient room humidity is high.
-
Main Power Switch Failure: The heavy duty on/off toggle switch can experience internal arcing and require replacement.
3. Maintenance Procedure & Schedule
-
Daily: Vacuum the entire top surface cloth thoroughly to pull away trapped lint from knitwear.
-
Weekly: Check the synchronization cable connecting the iron to the table for structural cuts or loose pins.
-
Monthly: Strip the main cover cloth off and inspect the underlying foam padding for collapse or water-logging. Dry completely if damp.
-
Bi-Annually: Check the tension springs holding the large cover taut. Replace loose or over-stretched springs.
4. Recommended Spare Parts & Replacement Rates
-
High-Density Wide Foam & Cover Kit: Keep 1 full set in reserve. Replace every 6 months due to high steam absorption from wide garment processing.
-
Synchronization Interface Relays: Keep 2 units on hand. Replace every 24 months to guarantee flawless automation.
-
Cover Tension Springs: Keep a pack of 6 replacement springs. Swap individual springs as they lose elasticity.

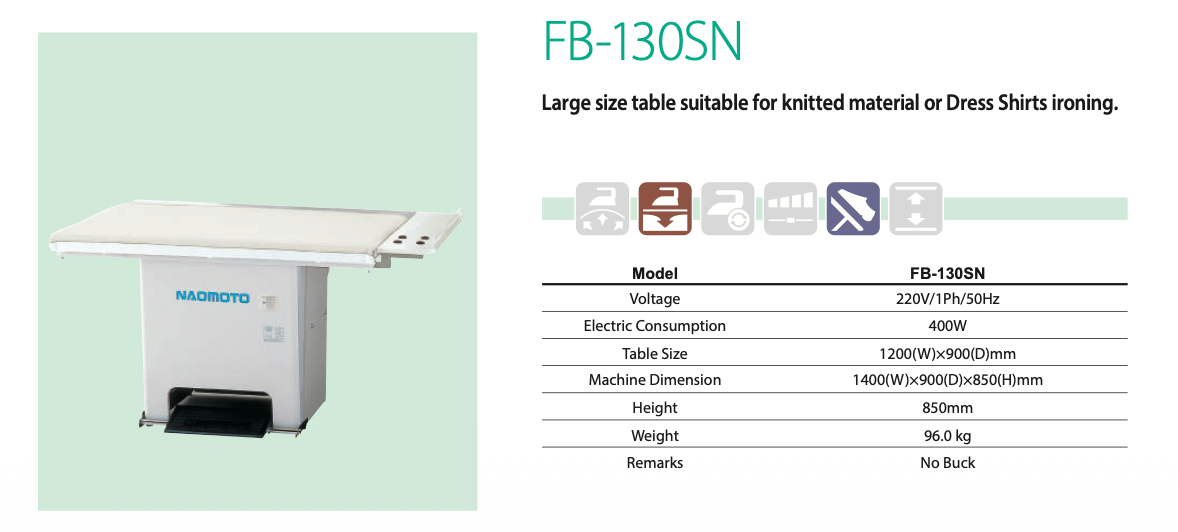

Naomoto FB-130SN Technical Specifications
| Specification Parameter
|
Technical Data
|
|
Model Number
|
FB-130SN
|
|
Air Functionality
|
Uniform Area Suction (Vacuum)
|
|
Buck Configuration
|
No Buck (Dedicated Large-Format Flatbed)
|
|
Best Suited For
|
Knitted materials, dress shirts, dresses, large garment panels
|
|
Electrical Voltage
|
220V / 1Ph / 50Hz
|
|
Power/Electric Consumption
|
400W
|
|
Table Size (W×D)
|
1200mm × 900mm (Extended Depth Layout)
|
|
Machine Dimensions (W×D×H)
|
1400mm × 900mm × 850mm
|
|
Table Height
|
850mm
|
|
Net Machine Weight
|
96.0 kg
|
|
Chimney Type
|
None |
What are the differences of these table model: FBZ-SE; FB-700SN; FB-130SN?
Model FBZ-SE:
220V, 1PH, 400W.
Blowing and Vacuum Table, Inverter Speed Control, Flat Table Size 1200X700mm,
2 Bucks with 2 Wing Arm, F-1720N Universal Buck/M-220N Sleeve Height Adjustable by Spring Body.
Without Exhaust Chimney(Option).
Model FB-700SN:
220V, 1PH, 400W.
Only for Vacuum Table. Table Size: 1200X700mm with Universal Buck F-1720N with Swing Arm.
Without Exhaust Chimney(Option).
Model FB-130SN:
Only Vacuum Table, Table Size: 1200X900mm without Buck and Exhaust Chimney(Option).
