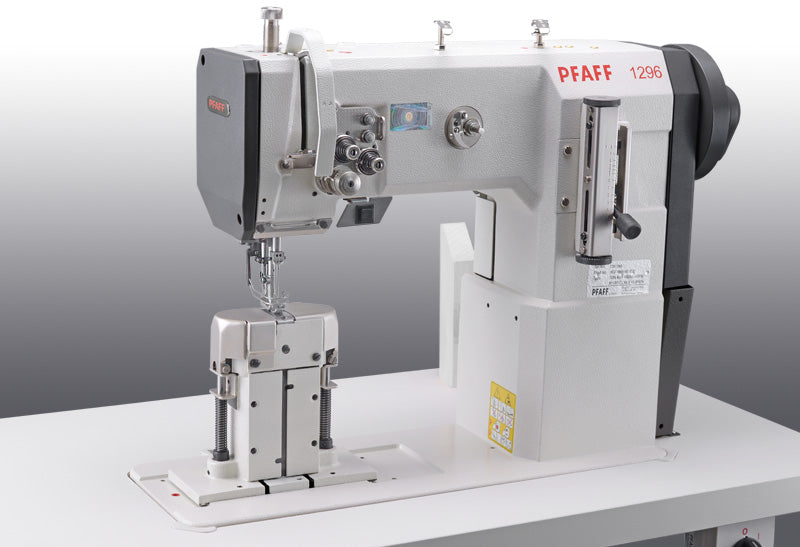

PFAFF 1296-6/01 CL X 10.0 PMN - Double Needle Unison Feed Post-Bed Machine

• Unison Feed
• Large Vertical Hook
• Plain Seaming operations (6/01)
• For Medium to Heavy Materials (C)
• Four Motion Drop Feed Version (P)
• Overload Clutch For Protection of Hook (M)
• Max. Stitch Length 6mm (N)
• KG767A Edge Guide + KB 1525 Bracket
• Table Top & Iron Stand

Applications

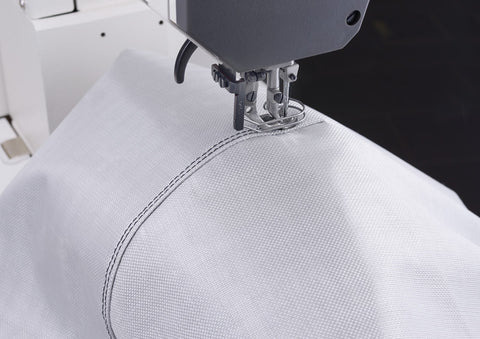

For three-dimensional fabrics in the upholstery industry

• High traction due to unison feed
• Even feed motion without any ply-shift of individual layers
• Large vertical hook with 60% more thread capacity than conventional hooks
• Protection of the hook against thread jamming by built-in and easy-to-handle overload clutch as standard equipment
• Rugged and durable machine construction
• Trouble-free stitching over cross-seams with no difference in stitch length, due to the alternating top feed with 7 mm stroke
• Easy to service
• Large fabric clearance of 14 mm for easier loading and removal of the workpiece
• Original PFAFF Industrial machines have an additional security label with several security features on the machine head. The advantage of this security label is the protection against growing product piracy

Needle System: 134-35 LR
Needle Size: 110 - 150 Nm
Max. Sewing Speeds: 1.900 s.p.m
Max. Stitch Length: 6,0 mm (CN11 Version 11,0 mm)
Stitch Type: 301 (Lockstitch)
Clearance Under The Sewing Foot: Max. 14,0 mm
Clear Workspace: 270 x 270 mm
Connection Voltage: Single-Phase A.C. 230 V, 50/60 Hz

*Accessories content might vary and manufacturers reserve the right to change the content and/or accessories with similar value without prior notice.

Please check the product manual for the detailed list of included accessories.

Options

• Thread Trimmer
• Backtacking System
• Automatic Presser Foot Lift
