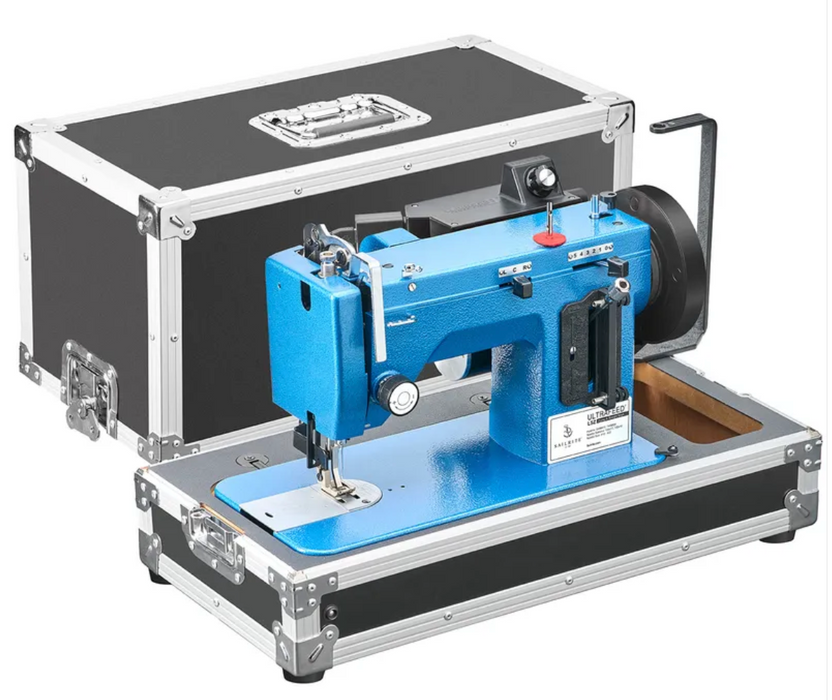

SAILRITE Ultrafeed LSZ Portable 2-in-1, Walking Foot Lockstitch & Zig-Zag Machine

Refer to the guidebook for operating, maintenance and model-specific instructions.

Download Ultrafeed LSZ Guidebook (PDF)

This is the existing LSZ-1 guidebook. Check that its instructions match the machine version supplied to you.

Operator Maintenance Guide

Switch off and unplug the machine before cleaning, oiling or changing parts. Brush lint and thread fragments from the feed dog, needle plate and bobbin or shuttle area. Replace bent, blunt or damaged needles, and check the threading, bobbin seating and visible belt condition before sewing.

Lubricate only the metal-to-metal points identified in the applicable guidebook, using suitable sewing machine oil. The supplied maintenance guidance suggests checking lubrication approximately every eight hours of use, before storage or when operation sounds rough. Do not oil the motor, electrical controls or belts unless the manufacturer specifically instructs you to do so. Wipe away excess oil and test on scrap material.

Keep the machine dry and covered. In marine or humid conditions, follow the manufacturer's corrosion-protection instructions. Never force a jammed handwheel. Stop using the machine if you hear unusual noises, experience repeated needle strikes or continue to get skipped stitches after basic checks; arrange inspection if needed.

Needle and material compatibility: Needle size, point style, thread size, presser-foot clearance and the total thickness of the material all affect sewing performance. Confirm the specifications against the supplied machine's guidebook and test on a representative sample.

Basic Replacement and Repair Checks

1. Switch off and unplug. Remove the work and check for trapped thread, a damaged needle or an incorrectly seated bobbin case. Do not force the handwheel or moving parts.
2. Needle replacement. Follow the instructions for the exact machine generation. Remove the old needle and fit the correct replacement in the specified orientation, ensuring it is fully seated before tightening the needle screw.
3. Bobbin-case replacement. Use a compatible case and follow the applicable guidebook for removing and installing it. Confirm that it is fully seated and correctly retained before testing.
4. Clearance check. Turn the handwheel slowly by hand to check for interference before reconnecting power. Stop immediately if the needle contacts metal or the mechanism binds.
5. Professional servicing. Leave hook damage, persistent timing faults and electrical repairs to a qualified technician. Verify the fitted drive system before ordering belts or Posi-Pin components.

Suggested Spare Parts to Keep

The following quantities are practical starting points for a workshop, not verified bestseller rankings. Confirm compatibility with your exact machine generation and fitted components before ordering.

Common Troubleshooting Checks

• Skipped stitches: Check needle installation, needle condition and residue first. Presser-foot pressure, material handling, hook condition or timing may also need attention.
• Thread snagging or breakage: Check the thread path and needle, then inspect accessible hook and bobbin areas for trapped thread or visible damage. Have damaged components assessed by a technician.
• Jamming or binding: Unplug the machine, remove trapped thread and check bobbin-case seating. If the mechanism remains tight or the needle strikes metal, stop and arrange service.
